Abs Warning Light Does Not Go Off

DETECTING CONDITION:

TROUBLE SYMPTOM:

When starting the engine, the ABS warning light is kept ON.

WIRING DIAGRAM:

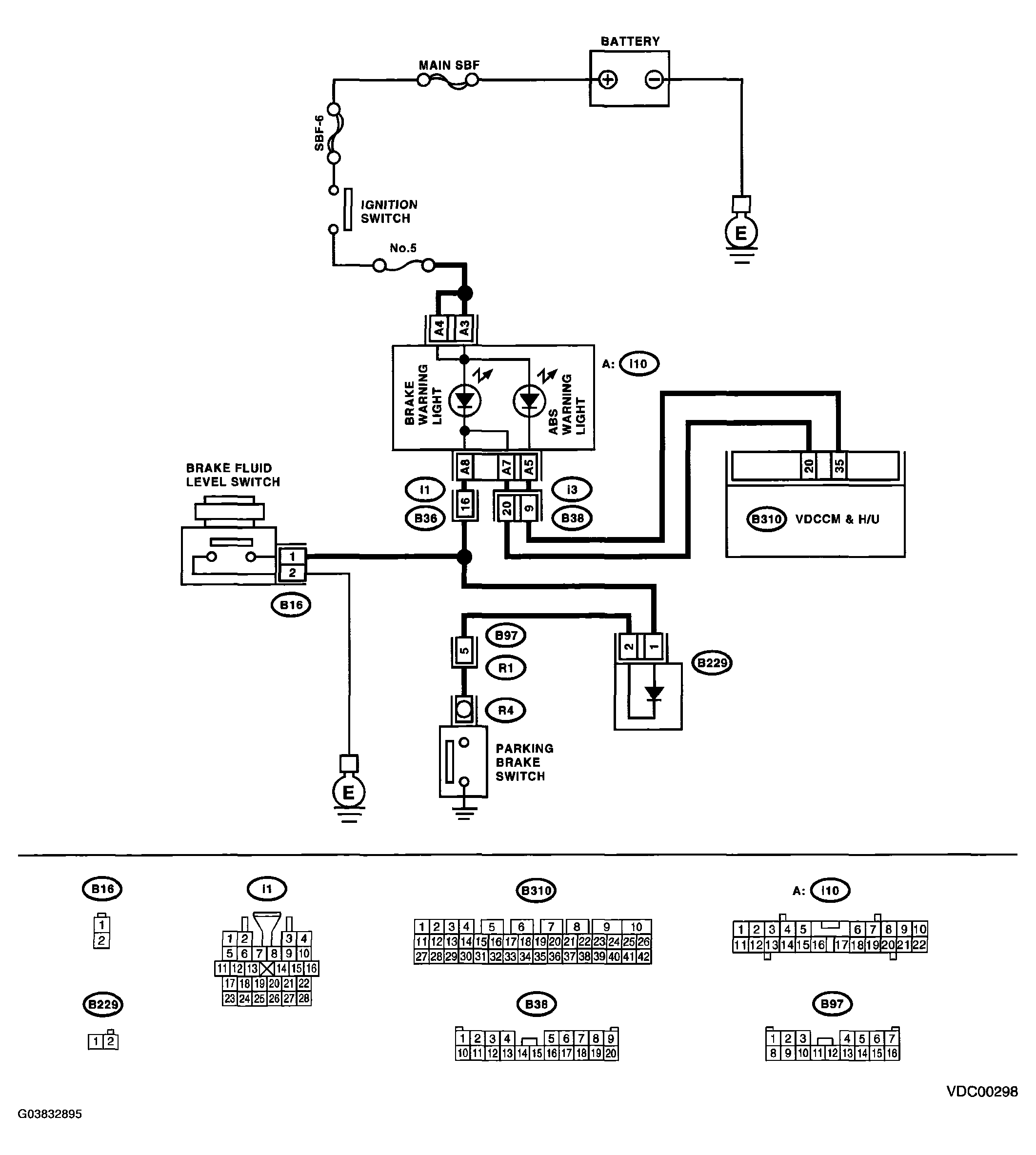

Fig 1: ABS Warning Light Does Not Go Off - Wiring Diagram And View Of Connectors

Courtesy of SUBARU OF AMERICA, INC.

INSPECTION DETAILS - ABS WARNING LIGHT DOES NOT GO OFF

Step	Check	Yes	No
1. READ DTC. Read the DTC. < Ref. to , READ DIAGNOSTIC TROUBLE CODE (DTC) . >	Is DTC displayed?	Perform the diagnosis according to DTC.	Go to step 2 .
2. CHECK WIRING HARNESS. Turn the ignition switch to OFF. Disconnect the connector (B310) from VDCCM&H/U. Disconnect the connector (i10) from combination meter. Measure the resistance between VDCCM&H/U connector and combination meter connector. Connector & terminal (B310) No. 35 - (i10) No. A5:	Is the resistance less than 0.5 ohm?	Go to step 3 .	Repair the harness connector between VDCCM&H/U and combination meter.
3. CHECK POOR CONTACT IN CONNECTOR. Check poor contact in all connectors.	Is there poor contact?	Repair the connector.	Go to step 4 .
4. CHECK VDCCM. Connect the connector to VDCCM&H/U (B310). Turn the ignition switch to ON. Measure the resistance between combination meter connector and chassis ground. Connector & terminal (i10) No. A5 - Chassis ground:	Is the resistance less than 0.5 ohm?	Check the combination meter.	Replace the VDCCM&H/U.
