Front Drive Shaft Assembly

FRONT DRIVE SHAFT ASSEMBLY SPECIFICATIONS

Model	Type of drive shaft	Axle diameter D mm (in)	Axle length L mm (in)
Apply all	EBJ87+PTJ82	26(1.0)	349.6(13.76)

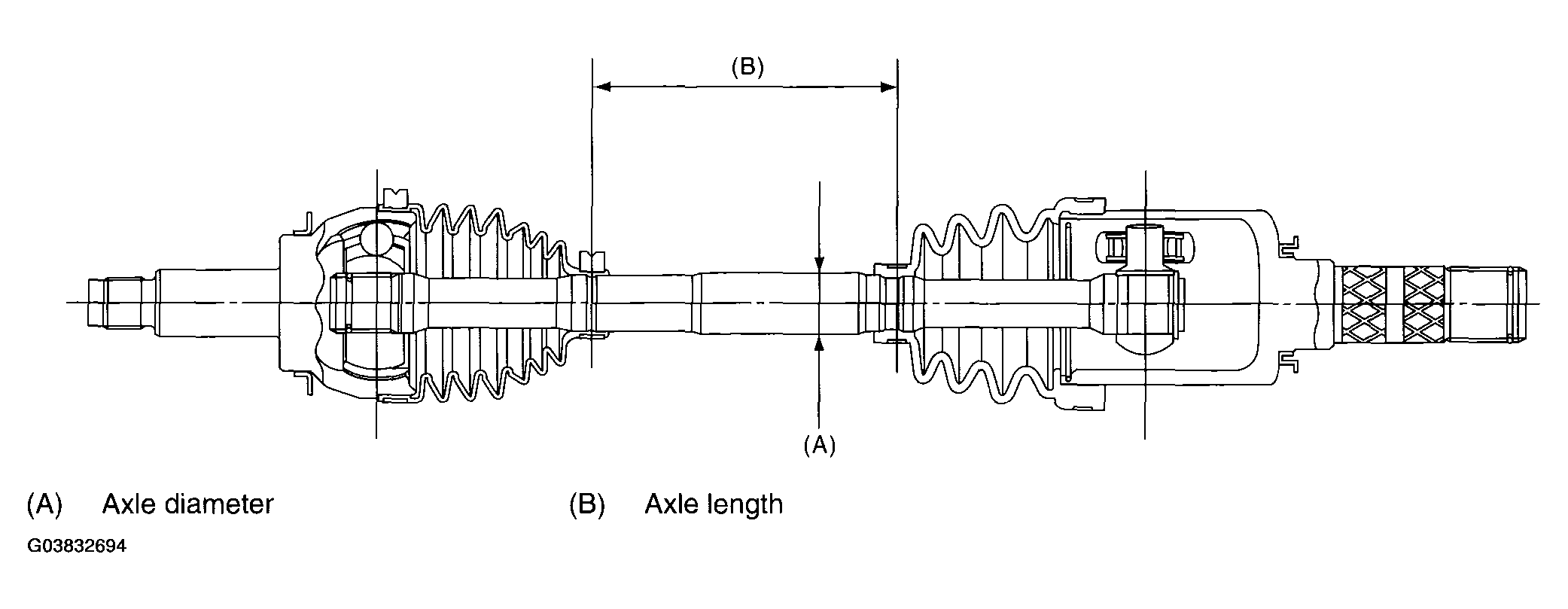

Fig 1: Identifying Front Drive Shaft Assembly

Courtesy of SUBARU OF AMERICA, INC.
