Instrumentation/Driver Info - Mechanism & Function
›
Clock Unit
›
Schematic Drawings
Schematic Drawings

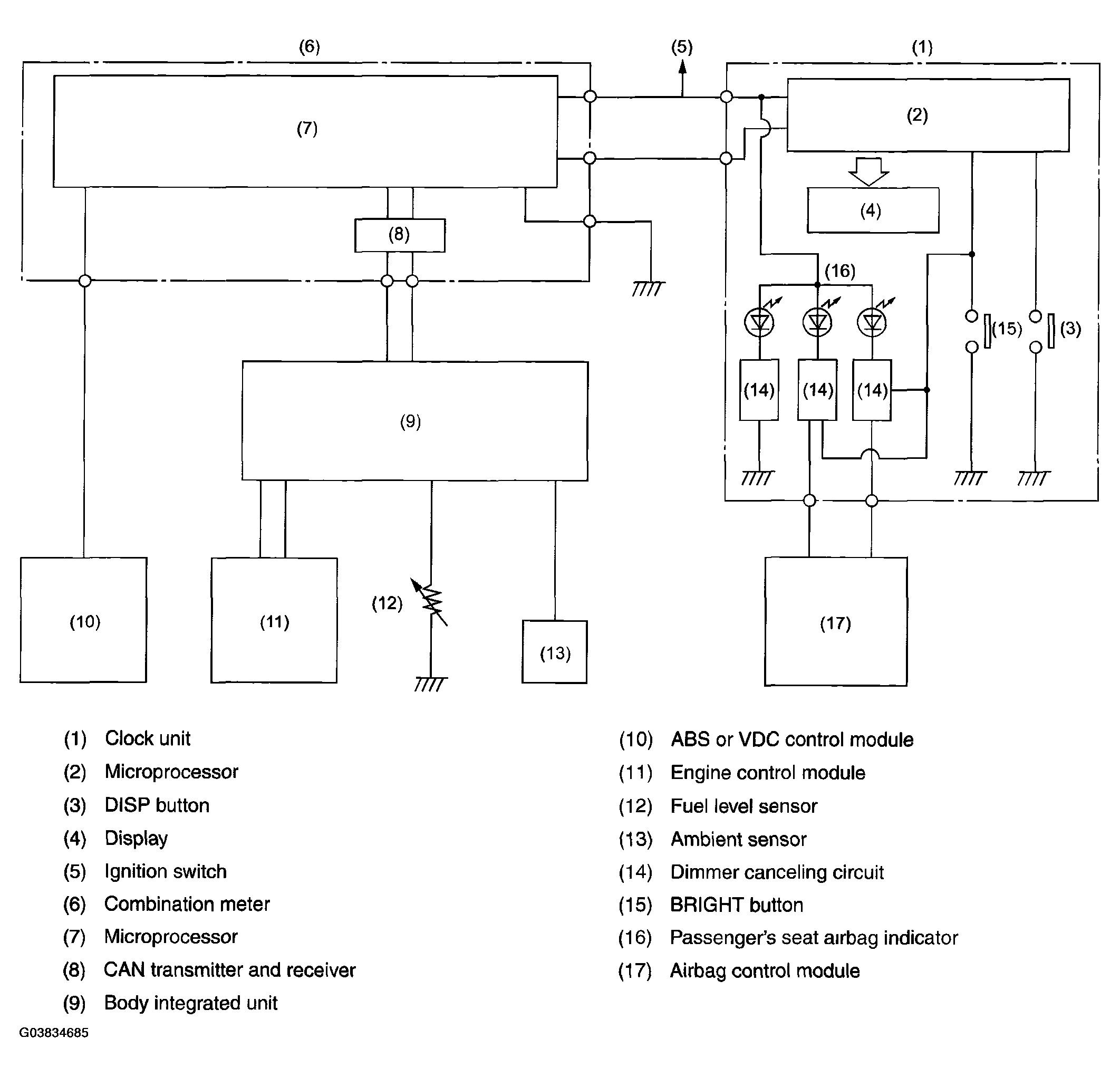

Fig 1: Instrumentation/Driver Info Schematic Drawings
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
