Telltale Light

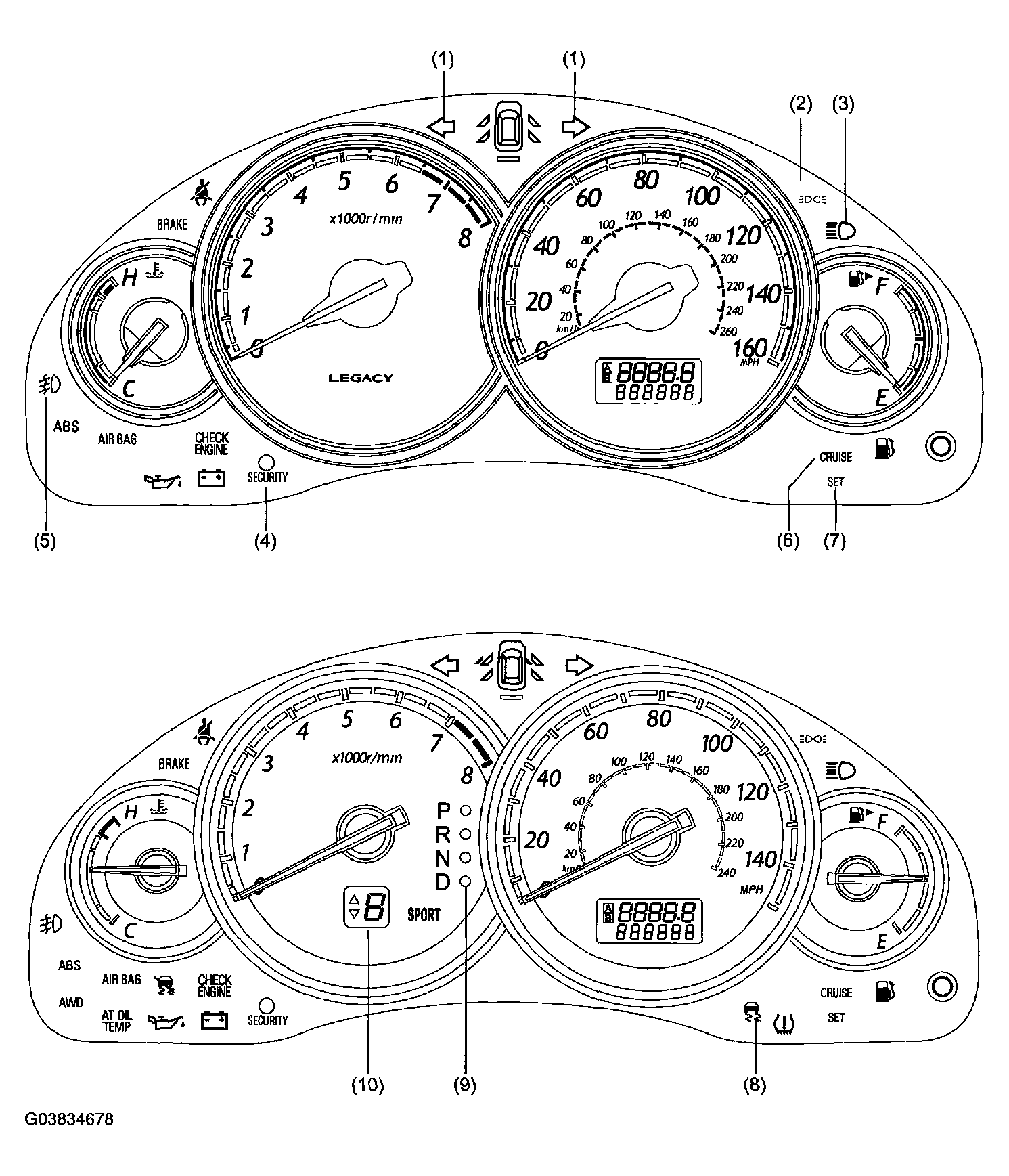

Fig 1: Identifying Telltale Light

Courtesy of SUBARU OF AMERICA, INC.

1. Turn signal indicator light

   This light blinks in unison with the corresponding turn signal lights when the turn signal switch is operated.

2. Lighting switch indicator light

   Turns on when the lighting switch is turned to the next position from OFF.

3. Headlight beam indicator

   This light illuminates when the headlights are in the high-beam position.

4. Immobilizer indicator

   This light illuminates when the immobilizer systems are armed.

5. Front fog light indicator light

   This light illuminates when the front fog lights are ON.

6. CRUISE indicator light

   This light illuminates when the cruise control main switch is turned ON.

7. SET indicator light

   This light illuminates when the cruise control main switch is turned ON and the SET/COAST switch on the command switch is turned ON.

8. Vehicle dynamics control function indicator light

   This light blinks when the vehicle dynamics control is operating.

9. AT selector lever position indicator (AT)

   The indicator corresponding to the present AT select lever position illuminates when the ignition switch is in any position other than ACC and LOCK.

10. Sports shift indicator (AT)

    Indicates the current gear position when sports shift is selected.

When everything is normal, the telltales should be ON, OFF or in other states as shown below according to ignition switch position.
