Horn Switch: Inspection

Measure the resistance between horn switch terminal and airbag module bracket.

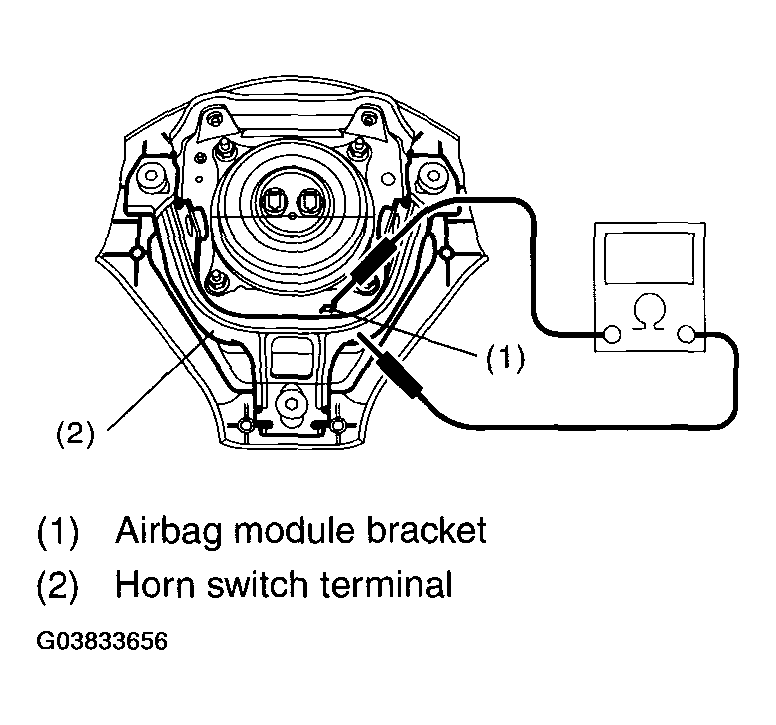

Fig 1: Measuring Resistance Between Horn Switch Terminal And Airbag Module Bracket

Courtesy of SUBARU OF AMERICA, INC.

SWITCH POSITION SPECIFICATION

Switch position	Terminal No.	Resistance
When horn switch is pushed	Horn switch terminal and airbag module bracket	Less than 1 ohm
When horn switch is not pushed	Horn switch terminal and airbag module bracket	More than 1 Mohm
