Engine Coolant Temperature Sensor: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

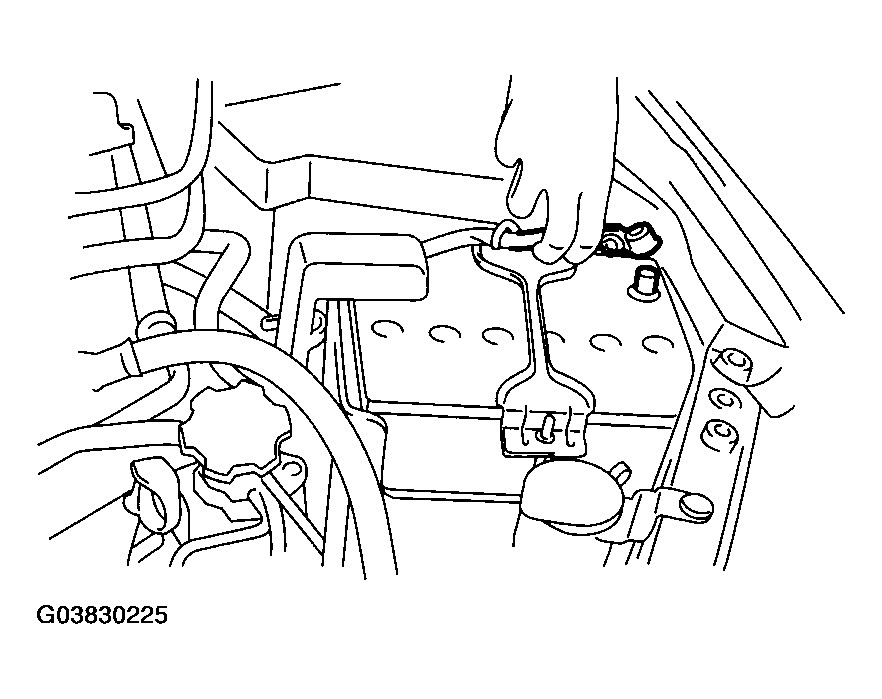

    Fig 1: Disconnecting Ground Cable From Battery
    G03830225Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector from engine coolant temperature sensor.
  4. Remove the engine coolant temperature sensor.

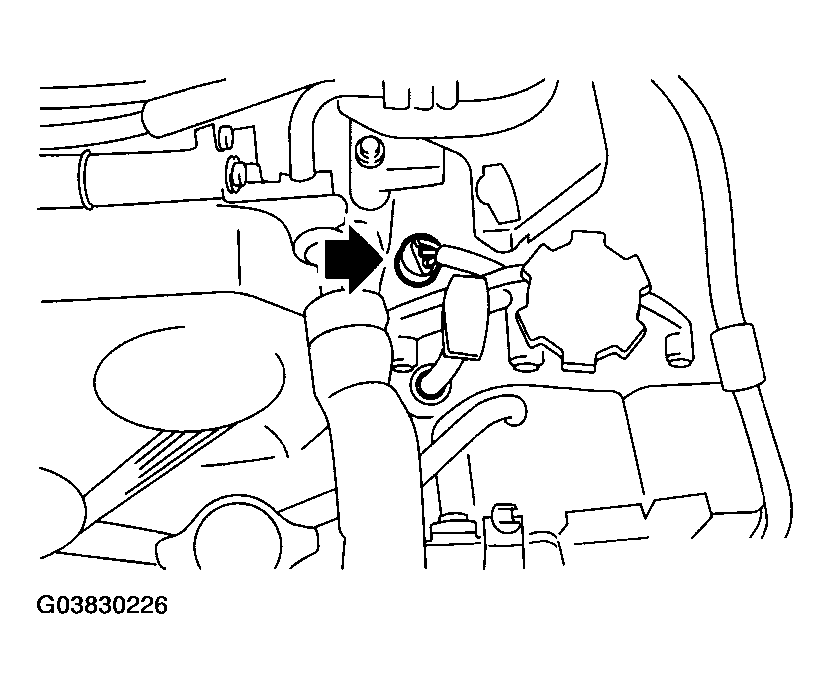

    Fig 2: Removing Engine Coolant Temperature Sensor
    G03830226Courtesy of SUBARU OF AMERICA, INC.
