LH Side

Install in the reverse order of removal.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

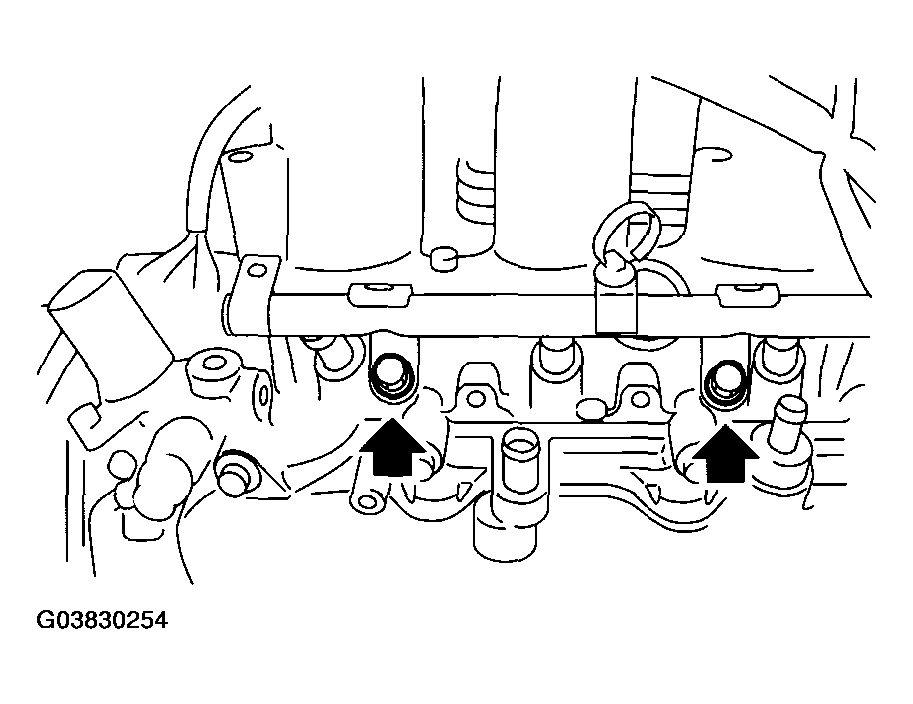

Fig 1: Identifying Fuel Injector Pipe Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

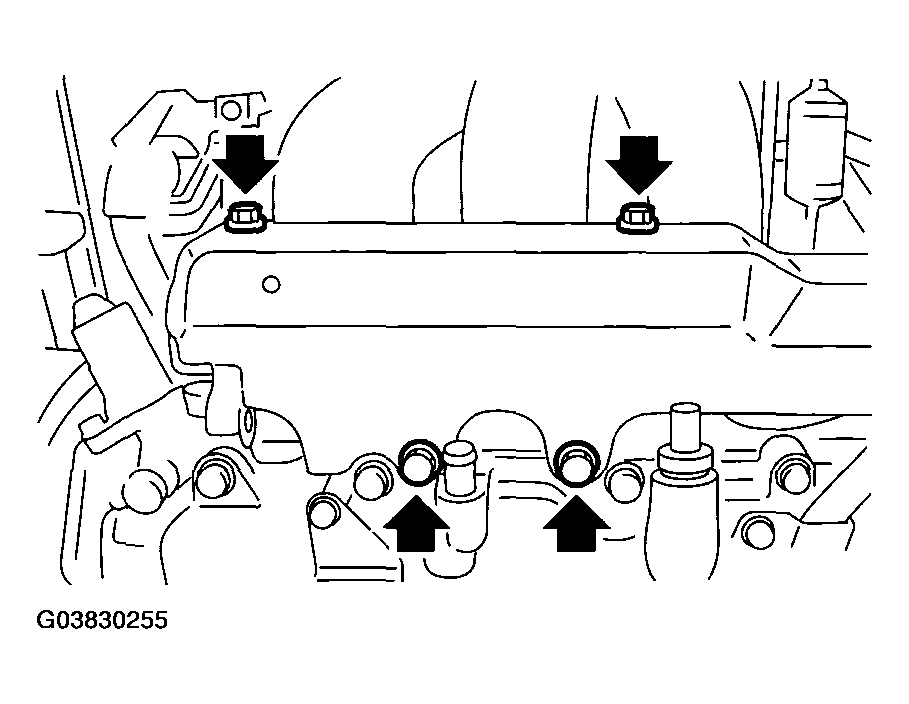

Fig 2: Identifying Fuel Pipe Protector (LH) Bolts

Courtesy of SUBARU OF AMERICA, INC.
