Fuel Pump Control Unit: Removal

Disconnect the ground cable from battery.

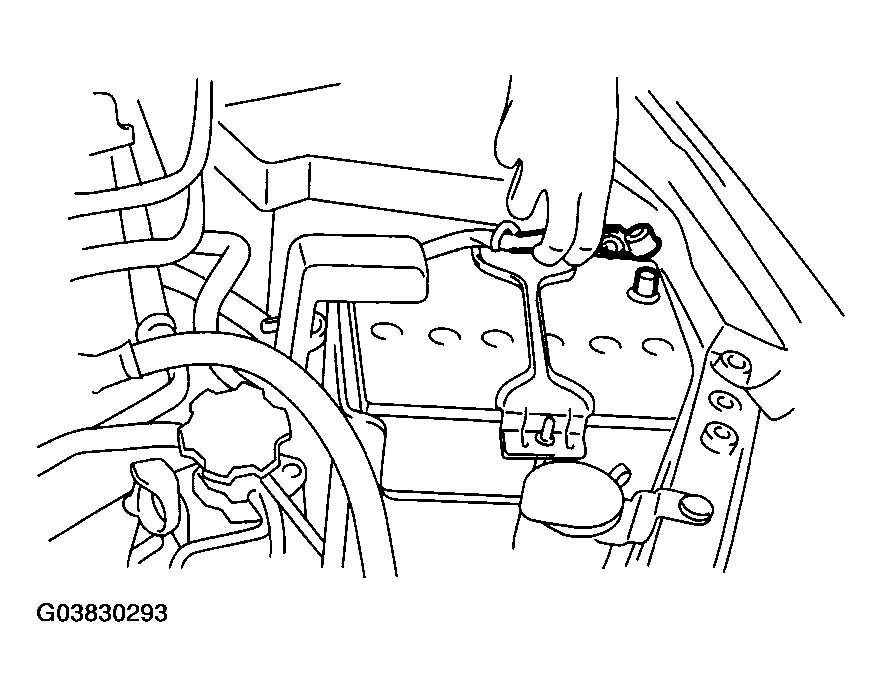

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear quarter trim. < Ref. to REMOVAL , Rear Quarter Trim. >
Remove the fuel pump control unit.
- Wagon model

  Fig 2: Removing Fuel Pump Control Unit (Wagon Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Sedan model
Fig 3: Removing Fuel Pump Control Unit (Sedan Model)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel pump control unit.
