Fuel Injection (Fuel Systems) (H6DO)
›
General Description
›
Components With Torque Specifications
›
Fuel Line
Fuel Line

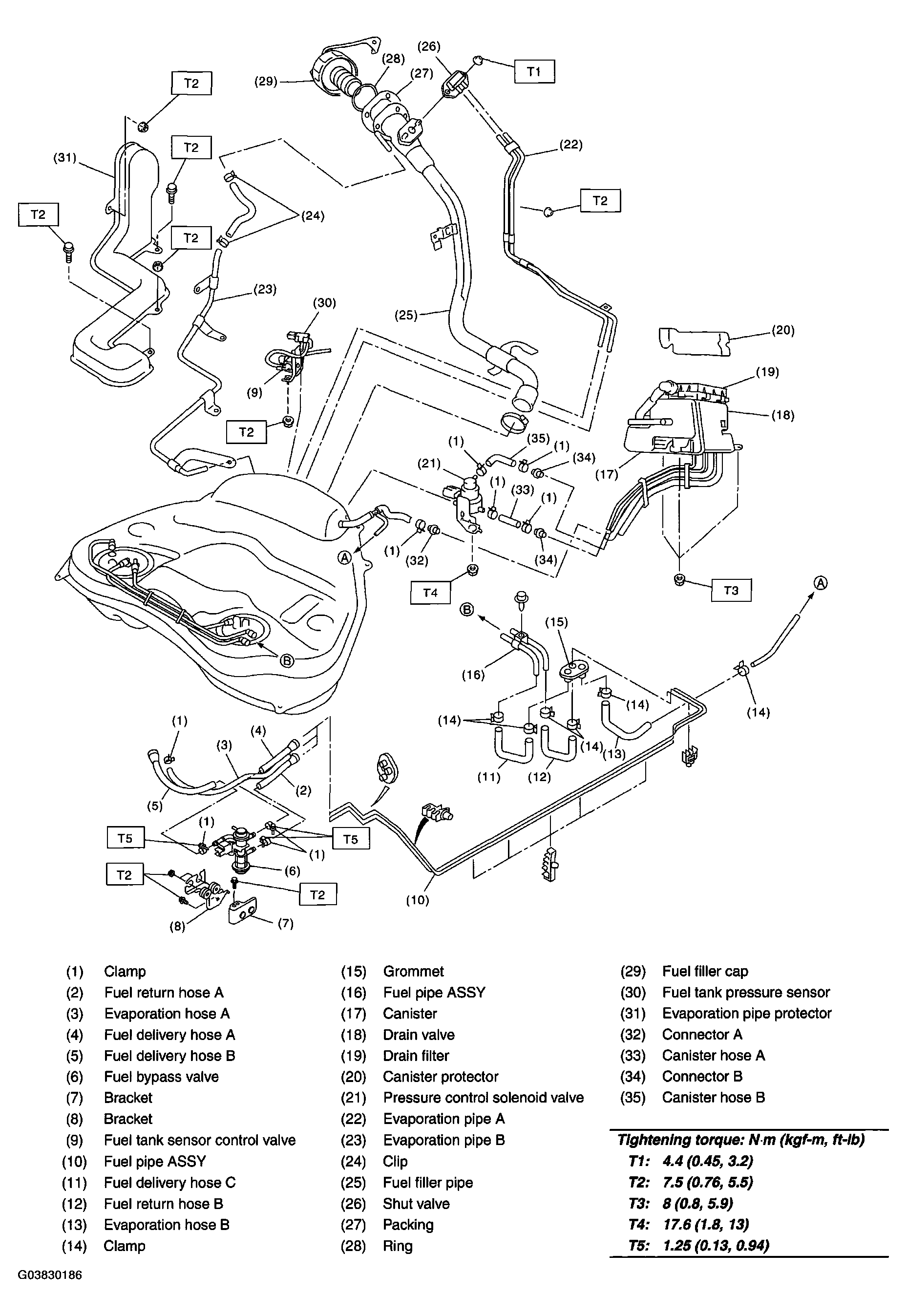

Fig 1: Exploded View Of Fuel Lines, EVAP System With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
