Propeller Shaft
WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

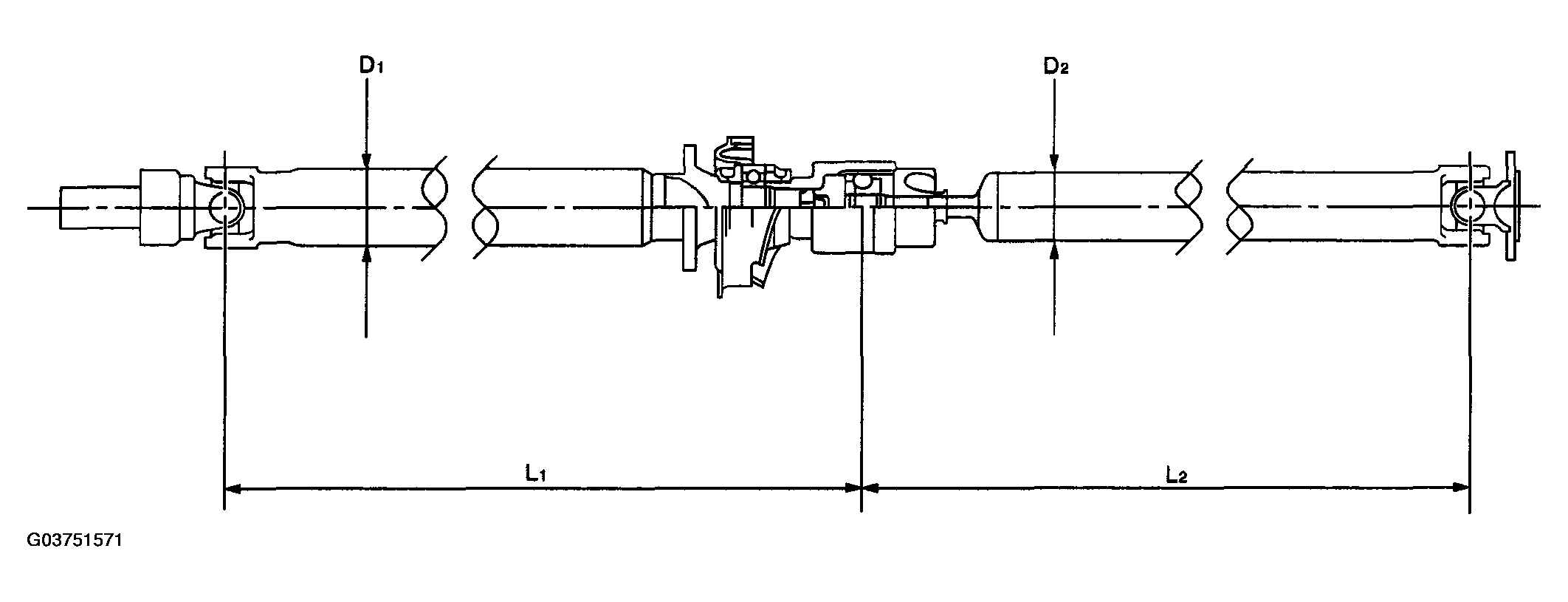

PROPELLER SHAFT SPECIFICATIONS
| Propeller shaft type |
DOJ type |
| Front propeller shaft Joint-to-joint length: L1
mm (in) |
AT |
629 (24.76) |
| MT |
688 (27.09) |
| Rear propeller shaft Joint-to-joint length: L2
mm (in) |
773 (30.43) |
| Outside diameter of tube: mm (in) |
D1 |
63.5 (2.500) |
| D2 |
57.0 (2.244) |
Courtesy of SUBARU OF AMERICA, INC.
