Hub Unit Bearing: Installation

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Align hub unit bearing with back plate at mounting holes and install hub unit assembly and back plate. Temporarily tighten axle nuts.
CAUTION: Be careful not to damage tone wheel.

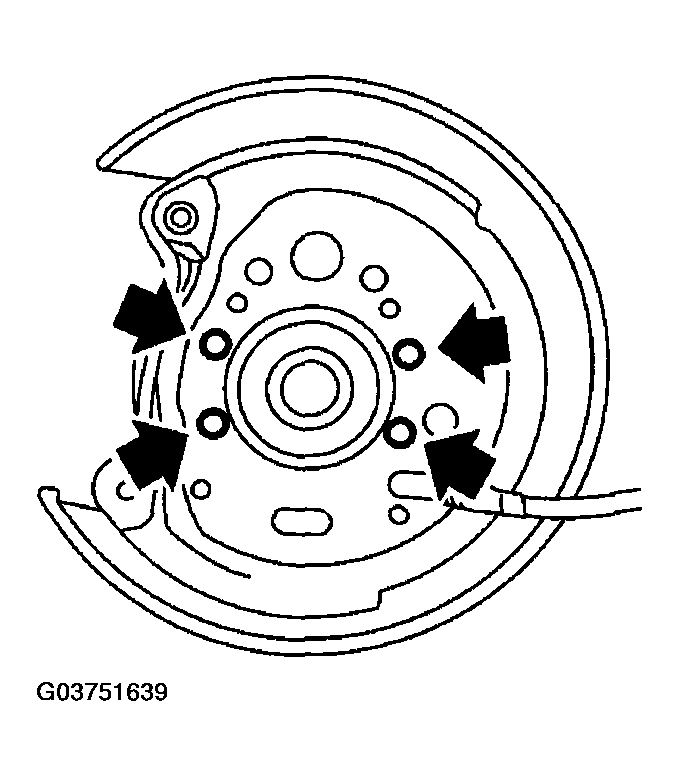

Fig 1: Locating Hub Unit Bolts
Courtesy of SUBARU OF AMERICA, INC.
Tighten four bolts to back plate.

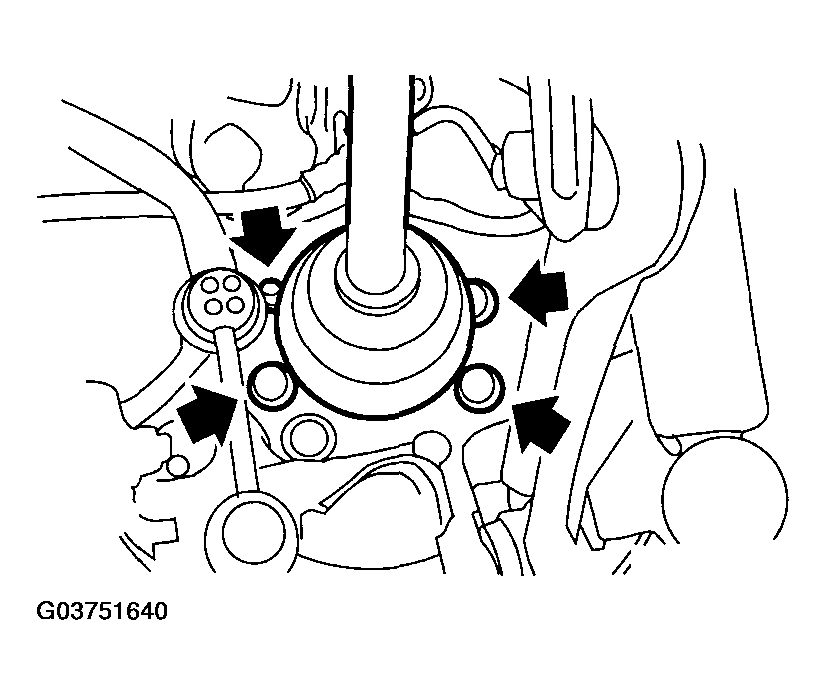

Fig 2: Locating Back Plate Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove axle nut.
Using ST1 and ST2, pull axle shaft into place.
ST1 922431000 AXLE SHAFT INSTALLER

ST2 927390000 ADAPTER

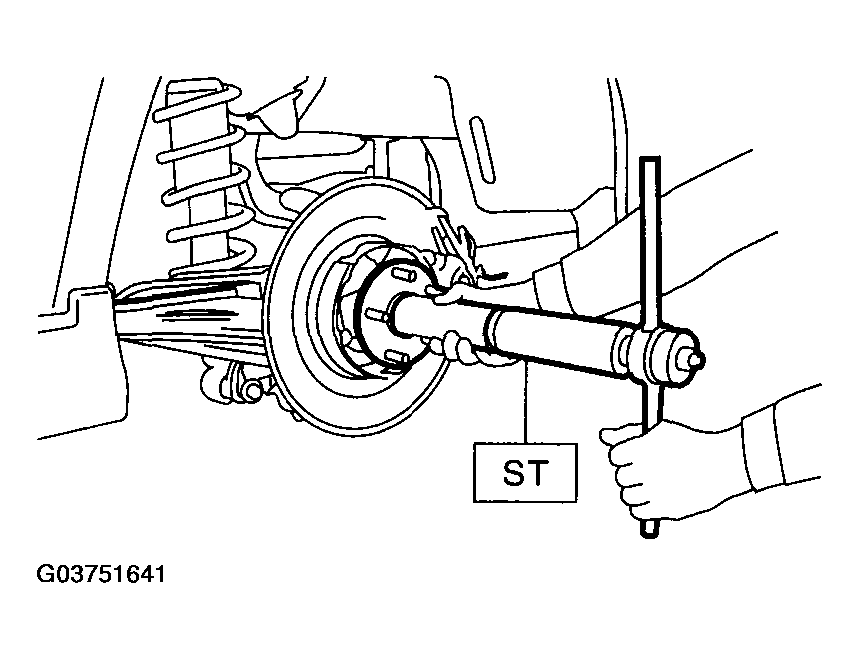

Fig 3: Pulling Axle Shaft Into Place
Courtesy of SUBARU OF AMERICA, INC.
Temporarily tighten axle nuts.
Install disc rotor on hub.
Install disc brake caliper on back plate.
Tightening torque:

52 N.m (5.3 kgf-m, 38.3 ft-lb)

Fig 4: Installing Disc Brake Caliper On Back Plate
Courtesy of SUBARU OF AMERICA, INC.
Install rear ABS sensor and brake cable bracket.

Fig 5: Locating Rear ABS Sensor And Brake Cable Bracket
Courtesy of SUBARU OF AMERICA, INC.
Adjust parking brake lever stroke by turning adjuster. < Ref. to ADJUSTMENT , Parking Brake Lever . >
Move brake lever back to apply brakes. While depressing brake pedal to prevent axle shaft from turning, tighten axle nut.
Securely lock axle nut after tightening.
Tightening torque:

235 N.m (24 kgf-m, 174 ft-lb)
CAUTION:
- Replace the removed axle nuts with new one. Use an axle nut for rear use only (Olive color).
- Always tighten axle nut before installing wheel on vehicle.
- Be sure to tighten axle nut to specified torque. Do not overtighten it as this may damage wheel bearing.
Fig 6: Locking Axle Nut
Courtesy of SUBARU OF AMERICA, INC.
Install rear wheel and tighten wheel nuts to specified torque.
Tightening torque:

108 N.m (11 kgf-m, 80 ft-lb)
