Front Sub Sensor Harness: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect the ground cable from the battery, and wait for at least 20 seconds before starting work.
  3. Remove instrument panel. < Ref. to REMOVAL , Instrument Panel Assembly . >
  4. Disconnect front sub sensor connector (blue) from airbag main harness.

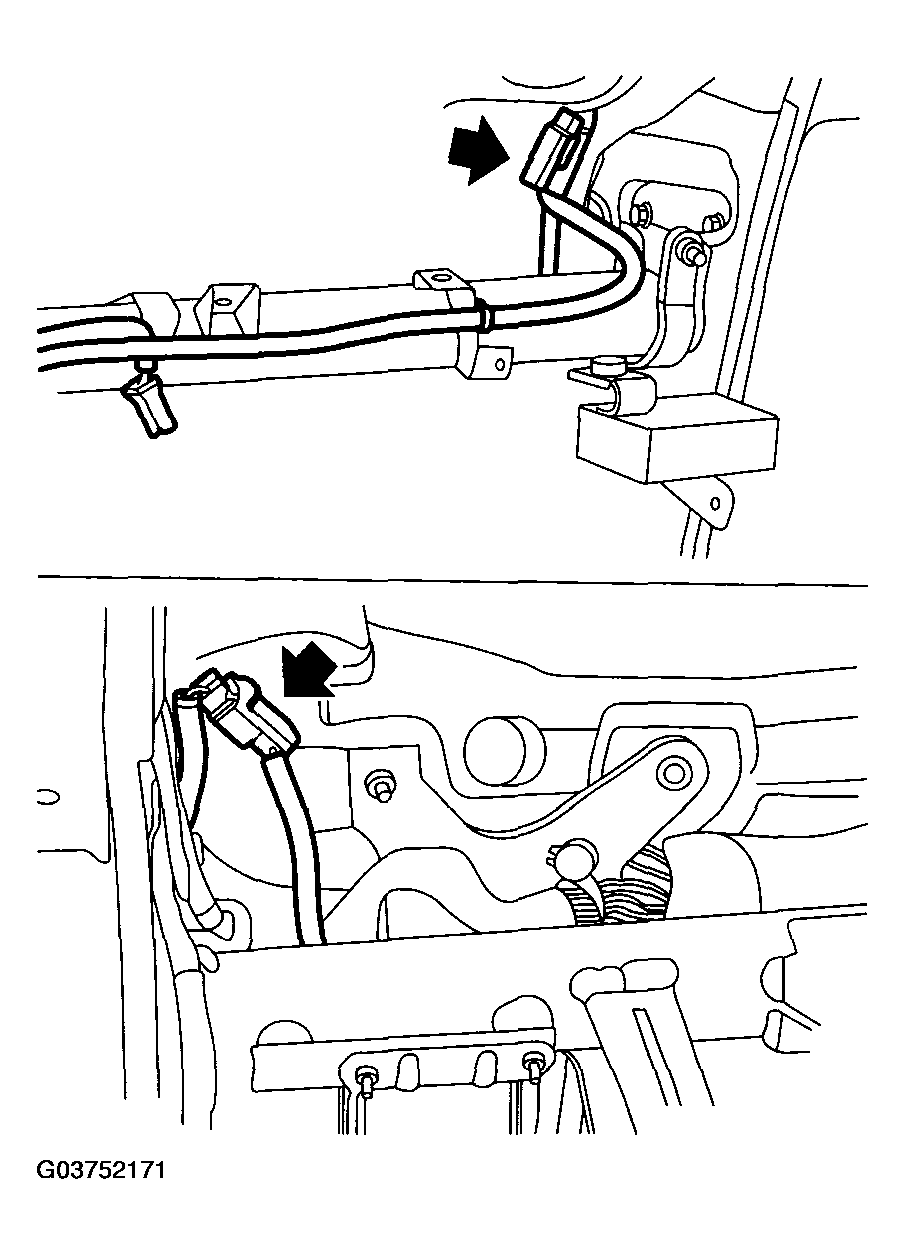

    Fig 1: Disconnecting Front Sub Sensor Connector (Blue) From Airbag Main Harness
    G03752171Courtesy of SUBARU OF AMERICA, INC.
  5. Remove front bumper. < Ref. to REMOVAL , Front Bumper
  6. Disconnect connector from front sub sensor.

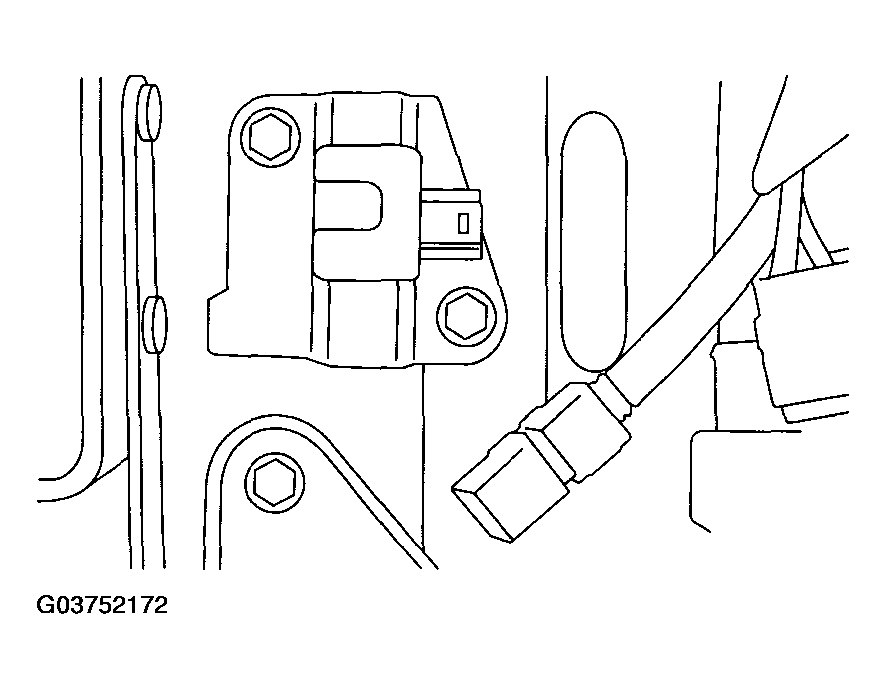

    Fig 2: Disconnecting Connector From Front Sub Sensor
    G03752172Courtesy of SUBARU OF AMERICA, INC.
  7. Remove wiring harness clips.
  8. Remove grommet, and then detach front sub sensor harness (A).

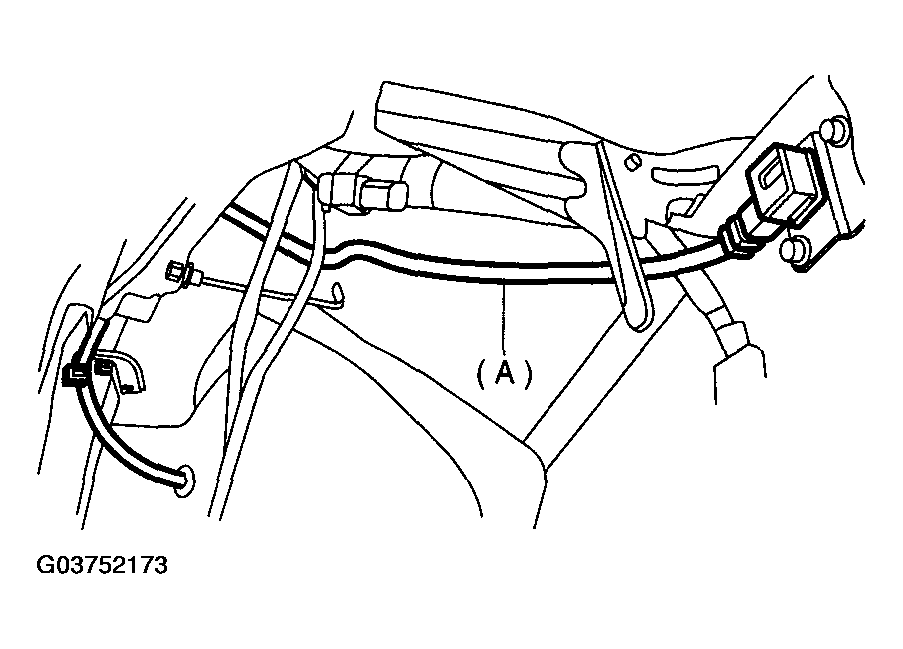

    Fig 3: Detaching Front Sub Sensor Harness
    G03752173Courtesy of SUBARU OF AMERICA, INC.
