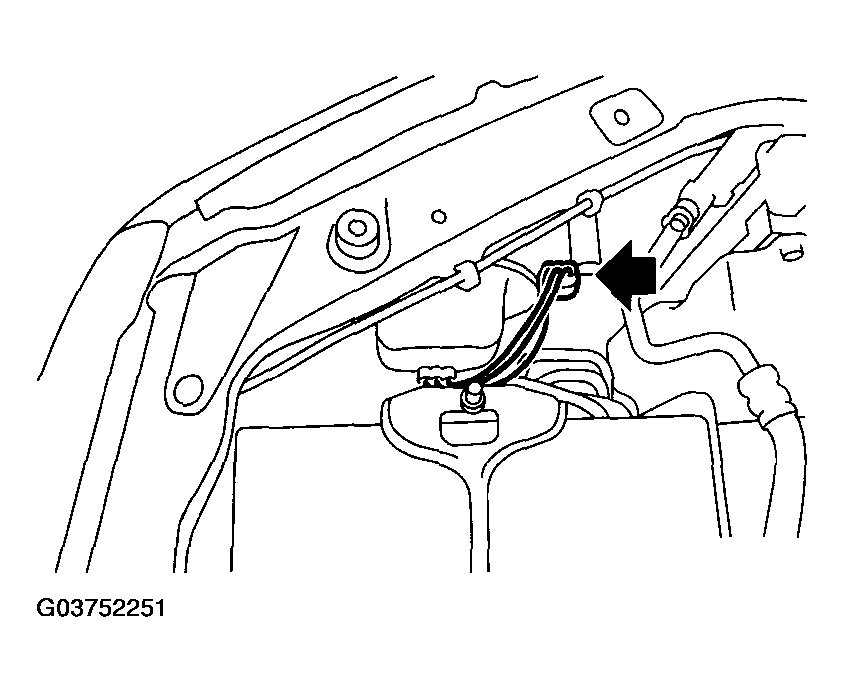

Headlight Assembly: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground cable from battery.

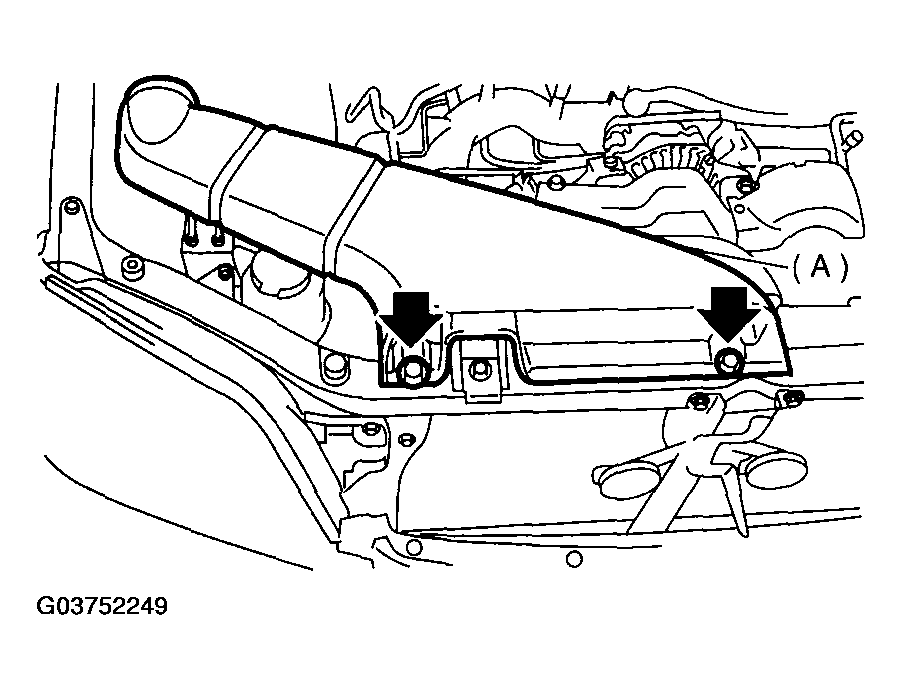

Remove duct (A) (when right side headlight is removed).

Fig 1: Removing Duct (A)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect headlight harness connector. Single-bulb type

Fig 2: Disconnecting Headlight Harness Connector (Single-Bulb Type)
Courtesy of SUBARU OF AMERICA, INC.

Dual-bulb type

Fig 3: Disconnecting Headlight Harness Connector (Dual-Bulb Type)
Courtesy of SUBARU OF AMERICA, INC.

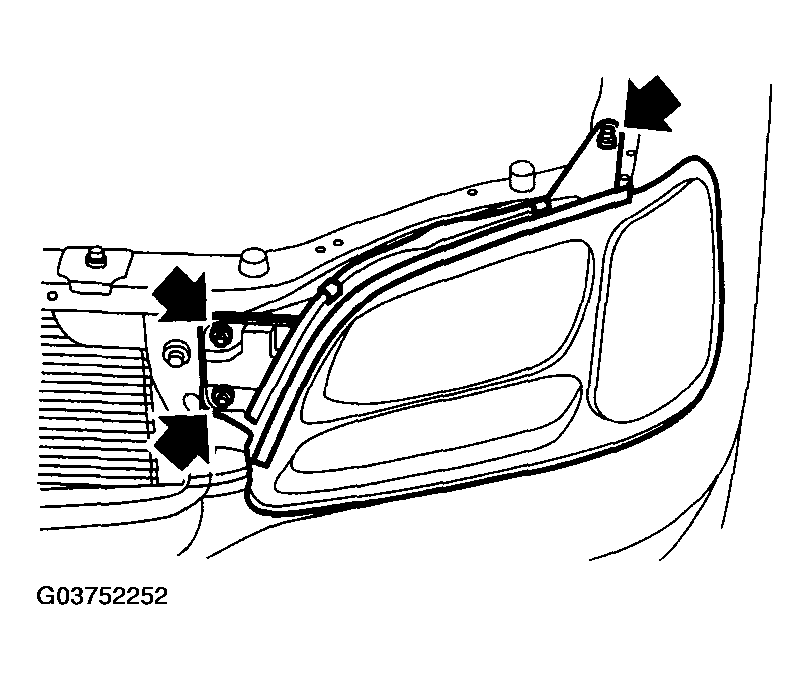

Remove three bolts and disconnect connectors, and then detach headlight assembly.

Fig 4: Removing Bolts And Disconnecting Connectors
Courtesy of SUBARU OF AMERICA, INC.
