Front Inner Remote: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim. < Ref. to REMOVAL , Front Door Trim . >
  2. Remove the sealing cover. < Ref. to REMOVAL , Front Sealing Cover . >
  3. Remove the two rod joints.
  4. Remove the screw, and detach the front inner remote.

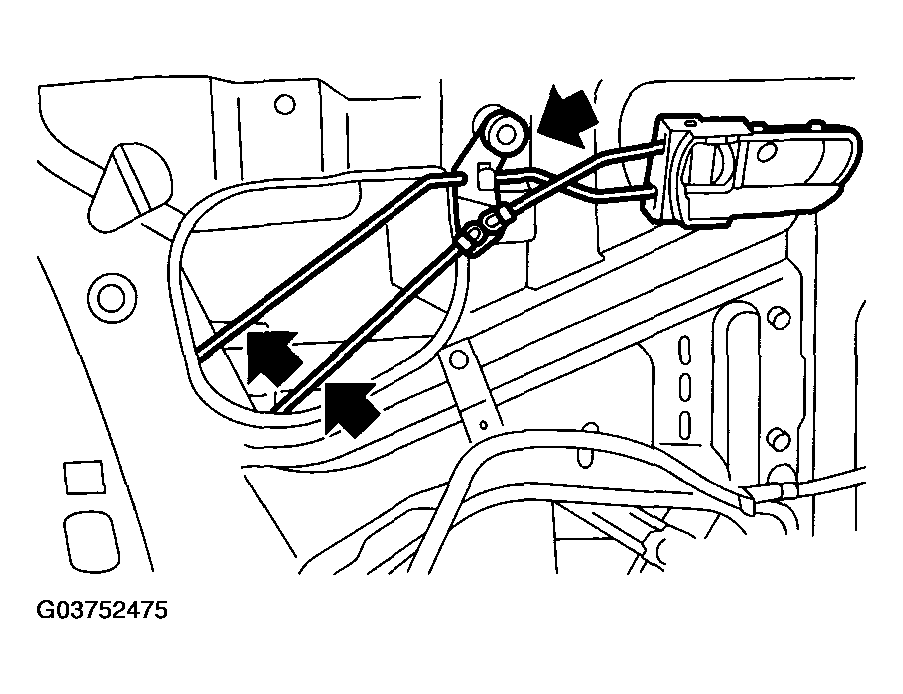

    Fig 1: Detaching Front Inner Remote
    G03752475Courtesy of SUBARU OF AMERICA, INC.
