Door Lock Assembly

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

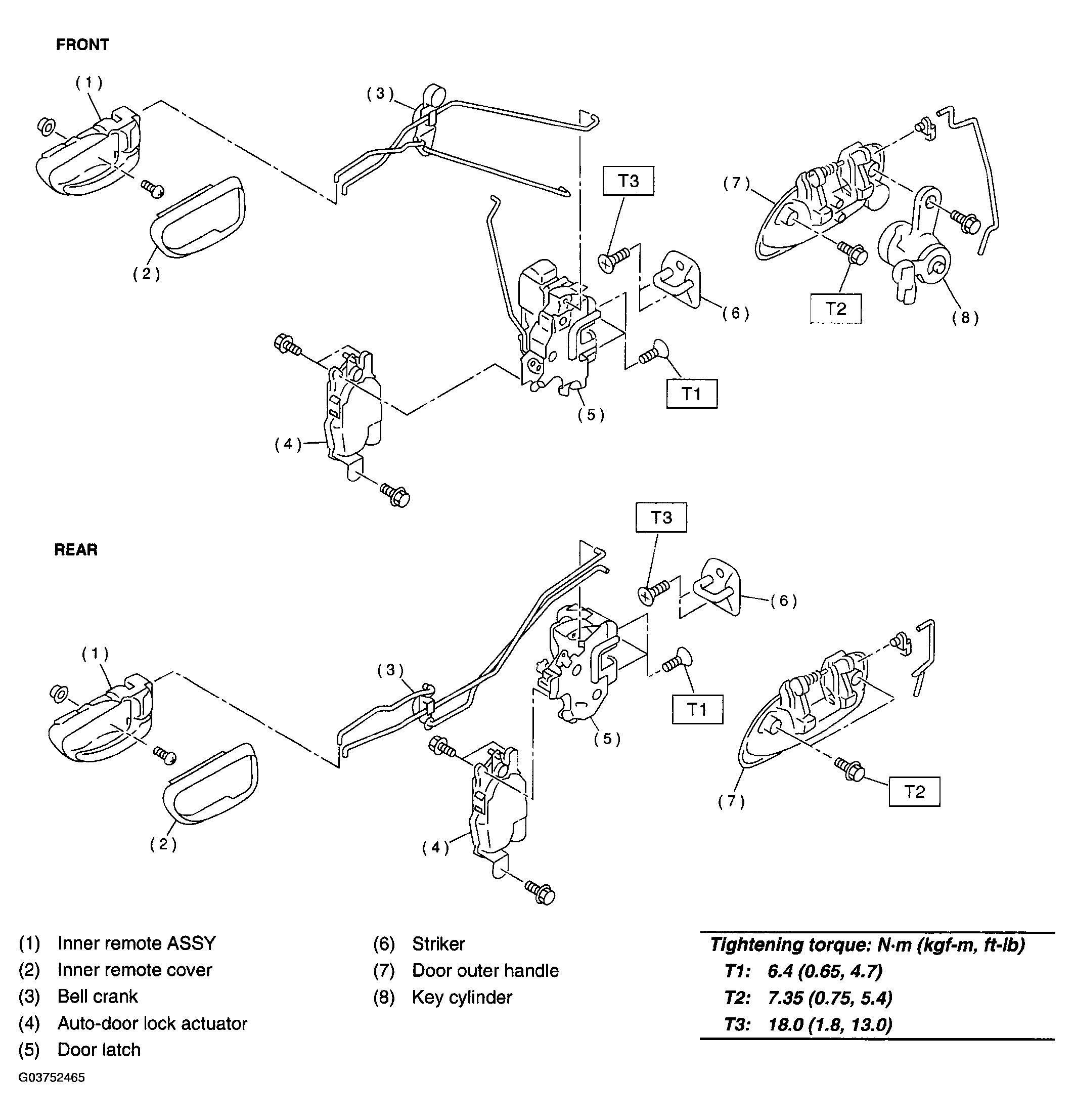

Fig 1: Exploded View Of Door Lock Assembly

Courtesy of SUBARU OF AMERICA, INC.
