Tail Gate Latch Assembly: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Remove tail gate tray. < Ref. to REMOVAL , Tail Gate Tray . >
Remove tail gate cover.

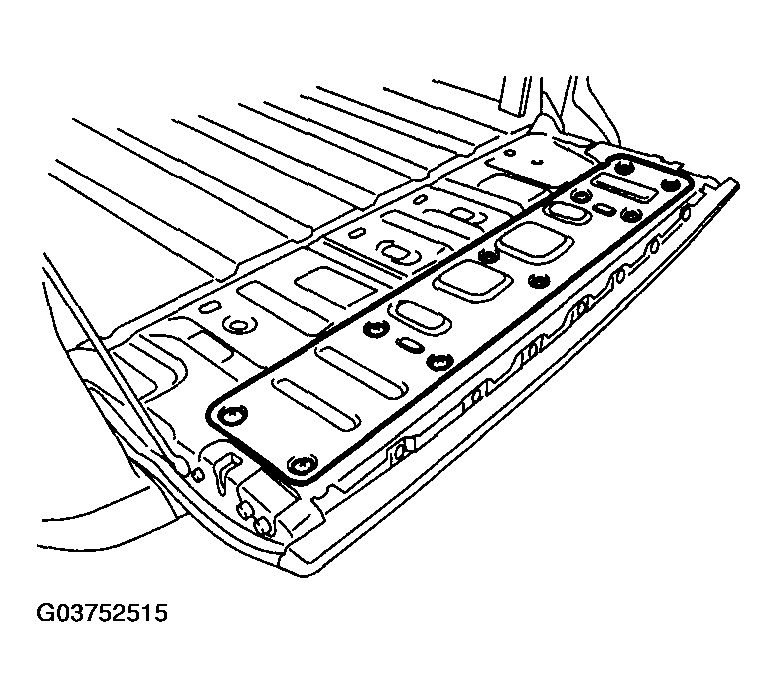

Fig 1: Removing Tail Gate Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove rod clamp.

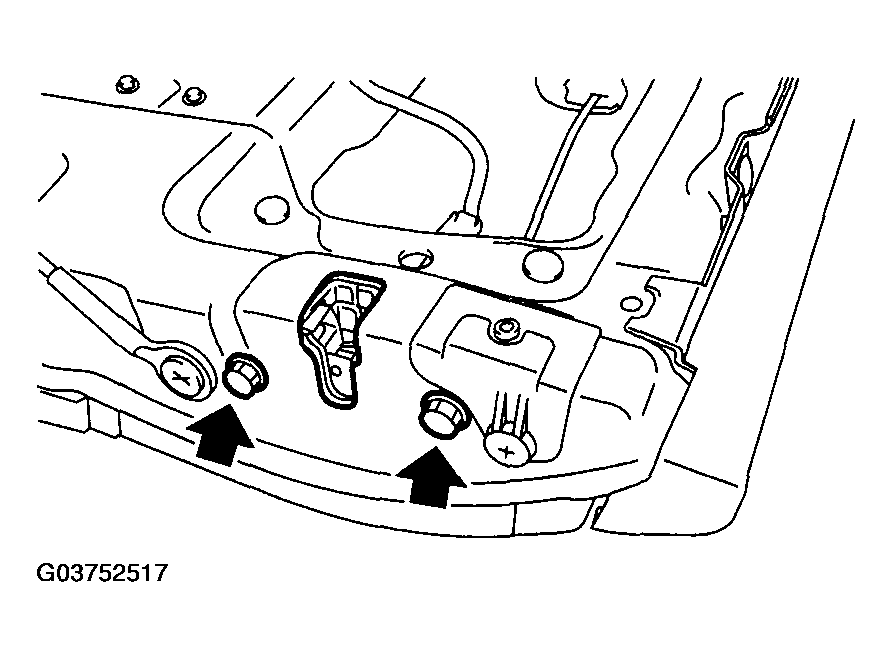

Fig 2: Removing Rod Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts and tail gate latch.

Fig 3: Removing Tail Gate Latch
Courtesy of SUBARU OF AMERICA, INC.
