Section 16 (Intake (Induction) (H4DOTC))
›
General Description
›
Components With Torque Specifications
›
Intake Duct
Intake Duct
WARNING:
This page is about a different variant/trim than selected.

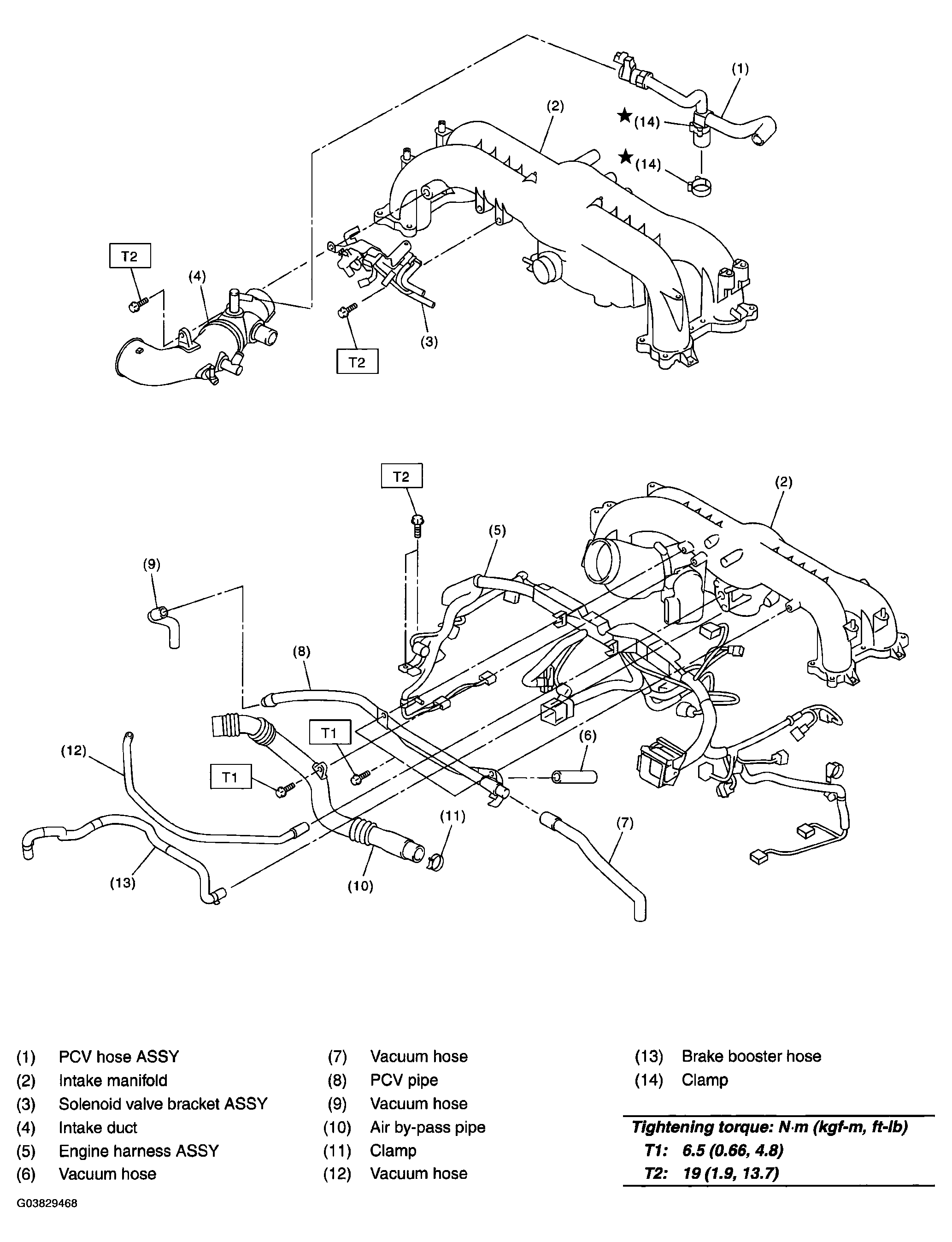

Fig 1: Exploded View Of Intake Duct Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
