Section 16 (Intake (Induction) (H4DOTC)): Intercooler: Assembly

WARNING: This page is about a different variant/trim than selected.

Assemble in the reverse order of disassembly.

Tightening torque:

6.5 N.m (0.66 kgf-m, 4.8 ft-lb)

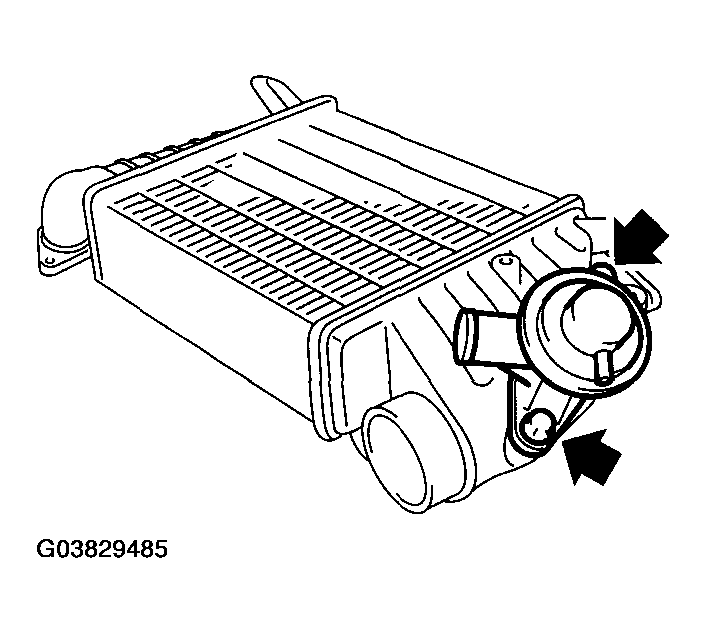

Fig 1: Assembling Air By-Pass Valve From Intercooler

Courtesy of SUBARU OF AMERICA, INC.
