Section 16 (Intake (Induction) (H4DOTC)): Intercooler: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the intake duct from intercooler.
  2. Remove the air by-pass valve from intercooler.

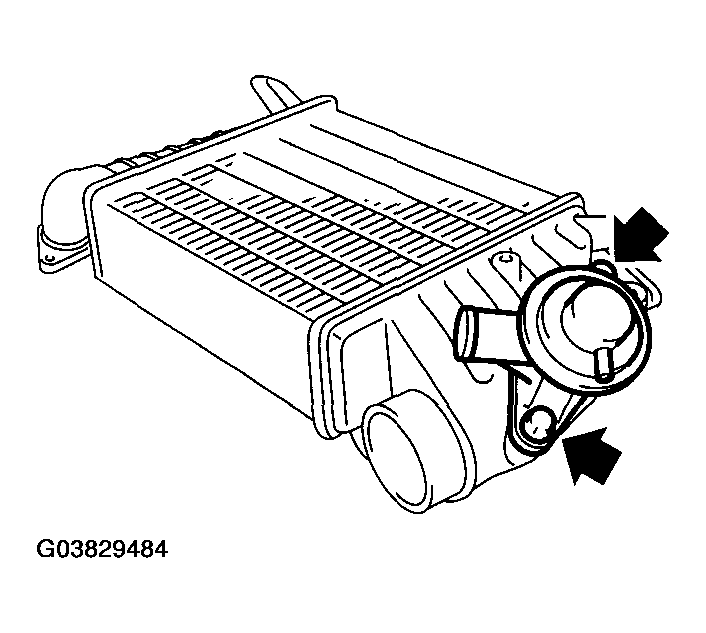

    Fig 1: Removing Air By-Pass Valve From Intercooler
    G03829484Courtesy of SUBARU OF AMERICA, INC.
