Section 16 (Intake (Induction) (H4DOTC)): Intercooler: Installation
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.

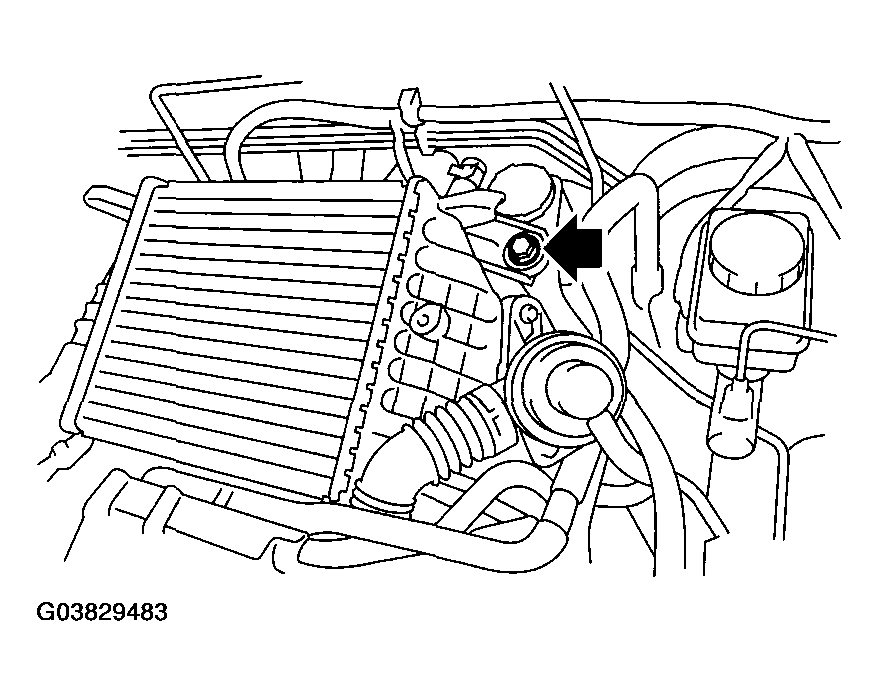

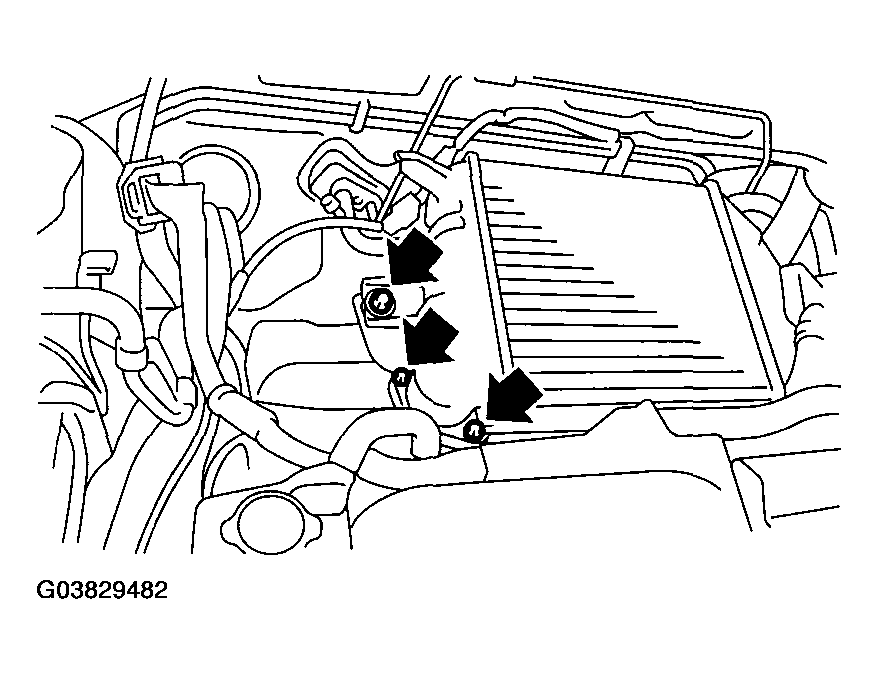

Tightening torque:
16 N.m (1.6 kgf-m, 11.6 ft-lb)
