Section 27 (Clutch System): Flywheel: Inspection

WARNING: This page is about a different variant/trim than selected.

NOTE: The illustration shown in Fig 1 is for Turbo model. However, perform the same procedure for Non-turbo model.

CAUTION: Since this bearing is grease-sealed and non-lubrication type, do not wash it with gasoline or any solvent.

Damage on sliding surface of facing and ring gear:
If defective, replace the flywheel.

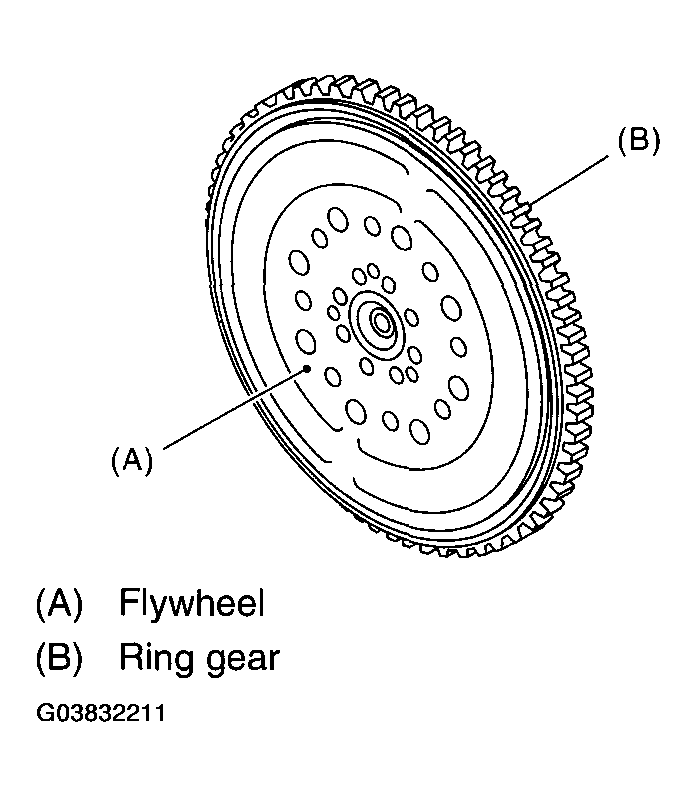

Fig 1: Installing Bearing Is Grease-Sealed And Non-Lubrication Type
Courtesy of SUBARU OF AMERICA, INC.
Smoothness of rotation
Rotate the ball bearing while applying pressure in thrust direction.
If noise or excessive play is noted, replace the flywheel.
