Section 27 (Clutch System): Flywheel: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: The illustration shown in Fig 1 is for Turbo model. However, perform the same procedure for Non-turbo model.
  1. Remove the transmission assembly. < Ref. to REMOVAL , Manual Transmission Assembly. >
  2. Remove the clutch cover and clutch disc. < Ref. to , REMOVAL , Clutch Disc and Cover. >
  3. Using the ST1 and ST2, remove the flywheel. ST1 498497100 CRANKSHAFT STOPPER ST2 499057000 TORX® PLUS

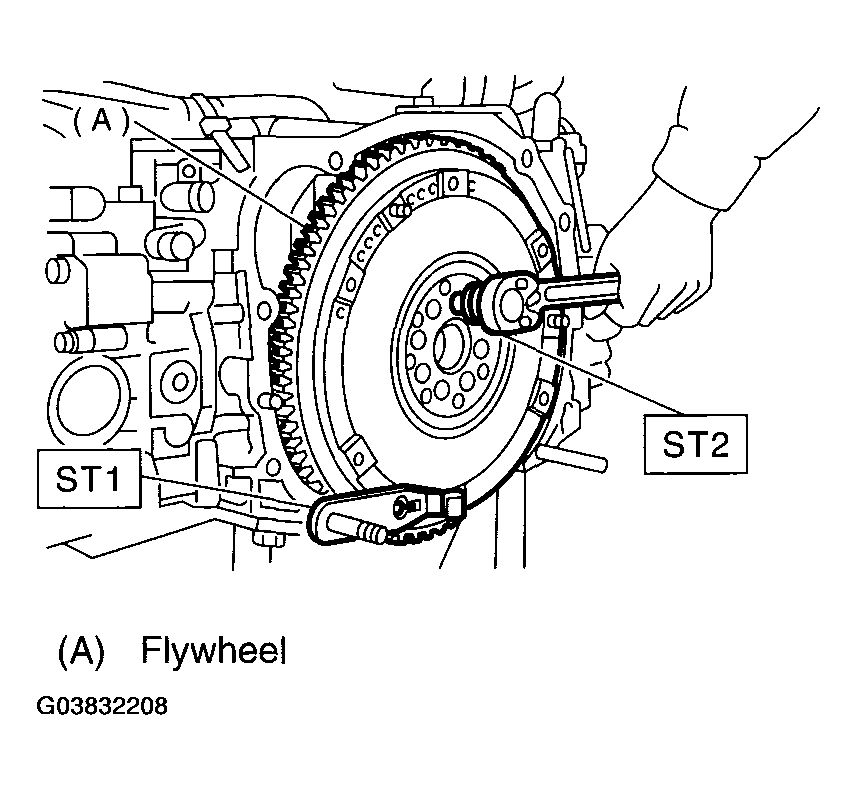

    Fig 1: Removing Clutch Cover And Clutch Disc Using Special Tool
    G03832208Courtesy of SUBARU OF AMERICA, INC.
