Clutch Assembly

WARNING: This page is about a different variant/trim than selected.

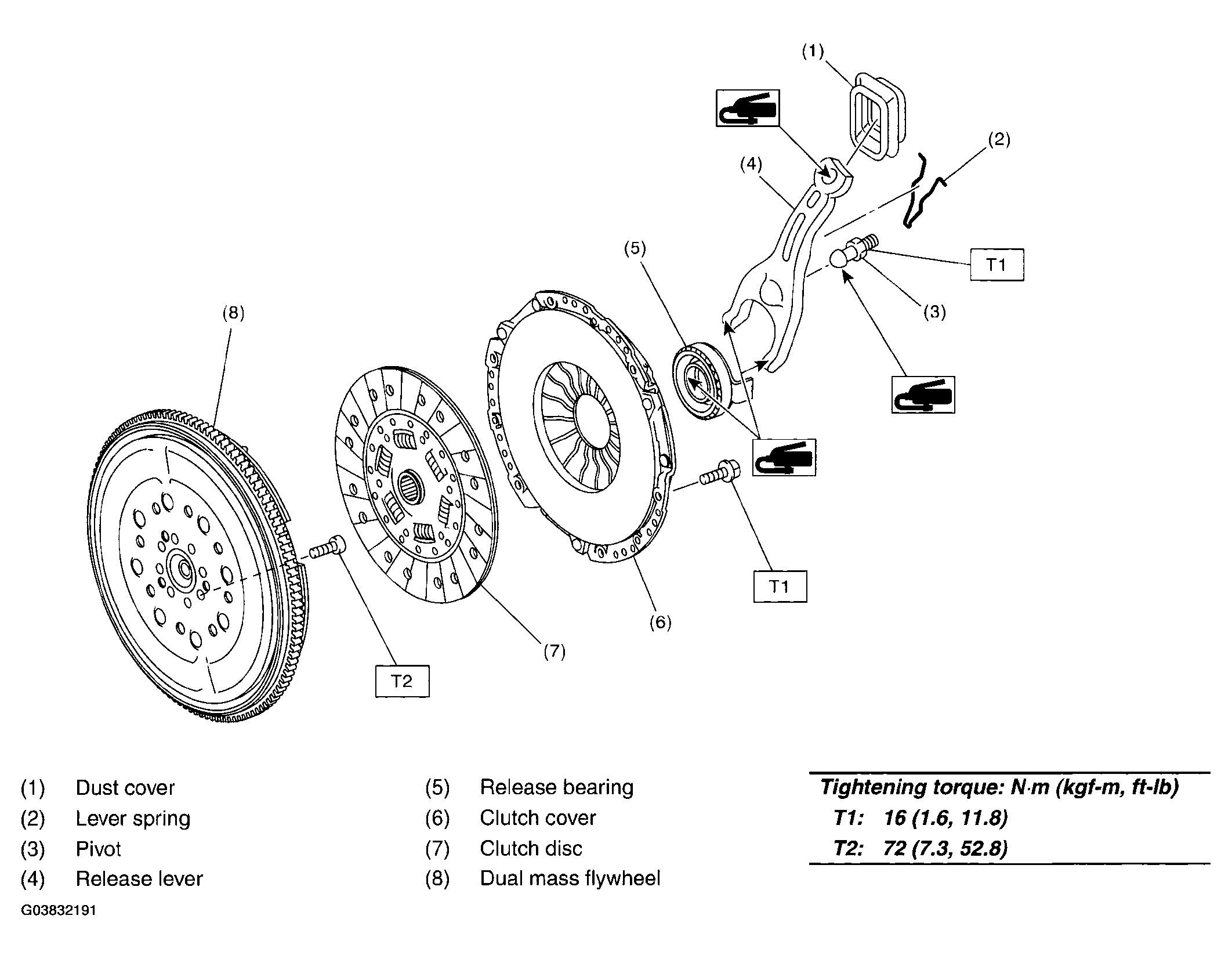

Fig 2: Exploded View Of Clutch Assembly With Torque Specifications (Turbo model)
G03832191Courtesy of SUBARU OF AMERICA, INC.
