Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air intake chamber. < Ref. to REMOVAL , Air Intake Chamber. >
Disconnect the clutch hose from operating cylinder.
CAUTION: Cover the hose joint to prevent clutch fluid from flowing out.

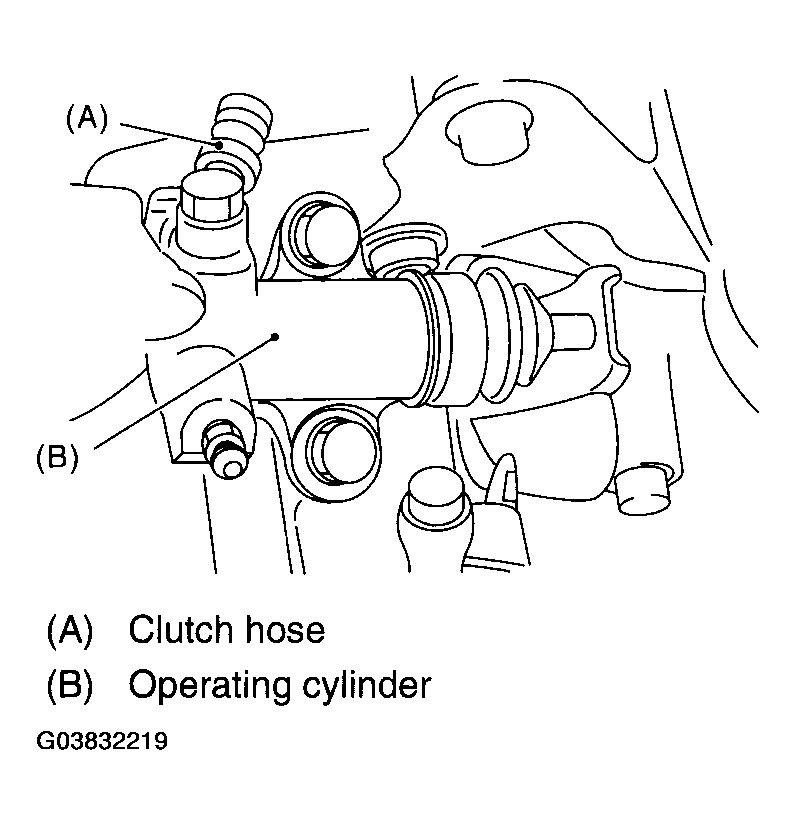

Fig 1: Disconnecting Clutch Hose From Operating Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from transmission.

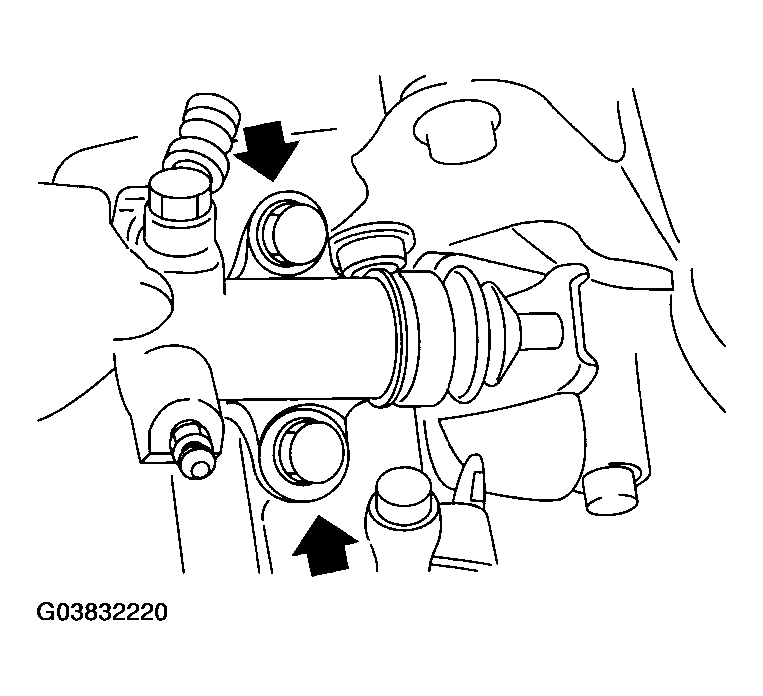

Fig 2: Removing Operating Cylinder From Transmission
Courtesy of SUBARU OF AMERICA, INC.
