Section 4 (Engine Mechanical (H4SO))
›
General Description
›
Components With Torque Specifications
›
Valve Rocker Assembly
Valve Rocker Assembly
WARNING:
This page is about a different variant/trim than selected.

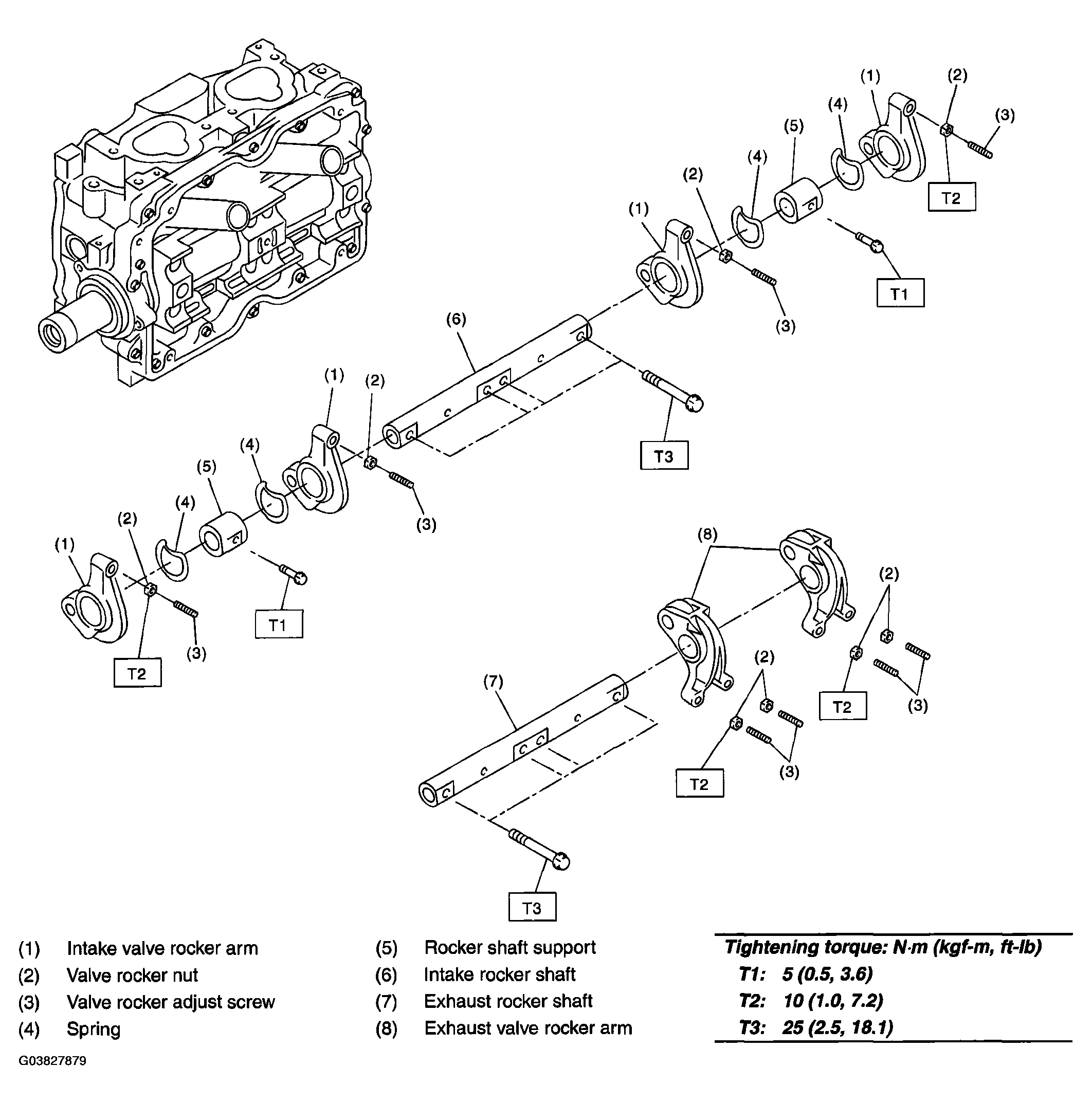

Fig 1: Valve Rocker Assembly Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
