Valve Rocker Assembly: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the valve rocker assembly.
    1. Temporarily tighten the bolts (a) through (d) equally in order as shown in Fig 1 .
      NOTE: Do not allow the valve rocker assembly to damage knock pins.
    2. Tighten the bolts (e) through (h) to specified torque.
    3. Tighten the bolts (a) through (d) to specified torque.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.1 ft-lb)

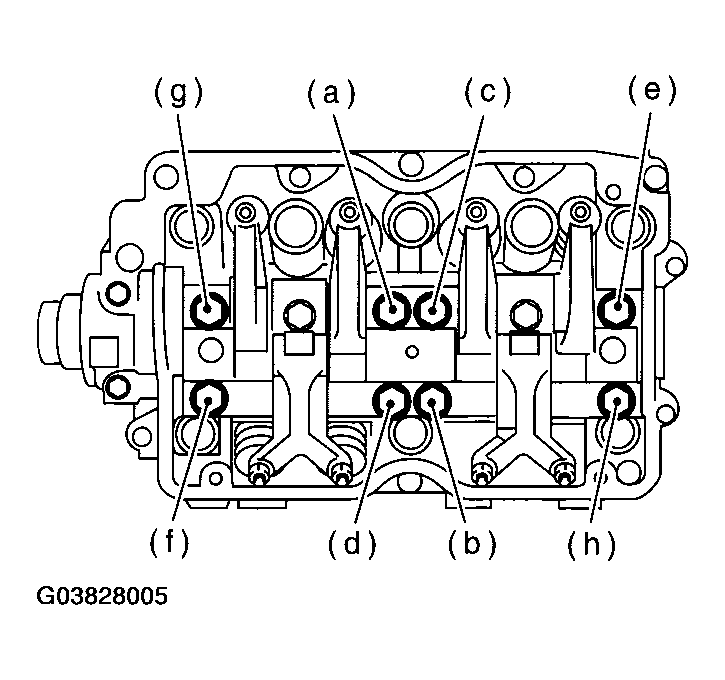

    Fig 1: Tightening Bolts In Alphabetical Sequence
    G03828005Courtesy of SUBARU OF AMERICA, INC.
  2. Adjust the valve clearance. < Ref. to , ADJUSTMENT , Valve Clearance. >
  3. Install the rocker cover and rocker cover gasket, and then connect PCV hose.
    NOTE: Use a new rocker cover gasket.
  4. Install the cam sprocket. < Ref. to , INSTALLATION , Cam Sprocket. >
  5. Install the timing belt. < Ref. to , INSTALLATION , Timing Belt. >
  6. Install the timing belt cover.

    < Ref. to , INSTALLATION , Timing Belt Cover. >

  7. Install the crank pulley. < Ref. to , INSTALLATION , Crank Pulley. >
  8. Install the V-belts. < Ref. to , INSTALLATION , V-belt. >
