Section 6 (Cooling System (H4SO)): Radiator: Installation

WARNING: This page is about a different variant/trim than selected.

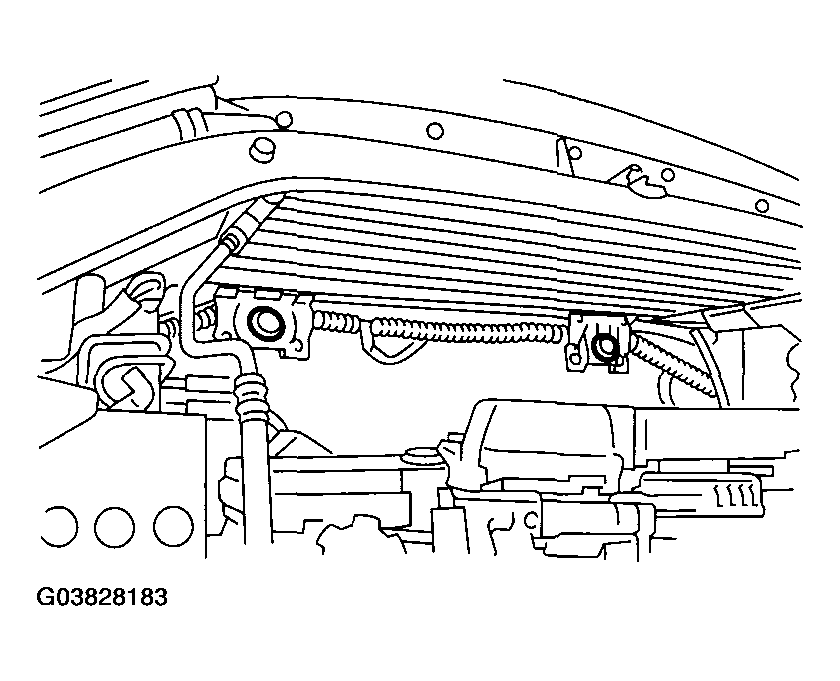

Attach the radiator lower cushions to holes on the radiator lower bracket.

Fig 1: Attaching Radiator Lower Cushions To Holes On Radiator Lower Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to vehicle.
NOTE: Make pins on the lower side of radiator be fitted into the radiator lower cushions on body side.

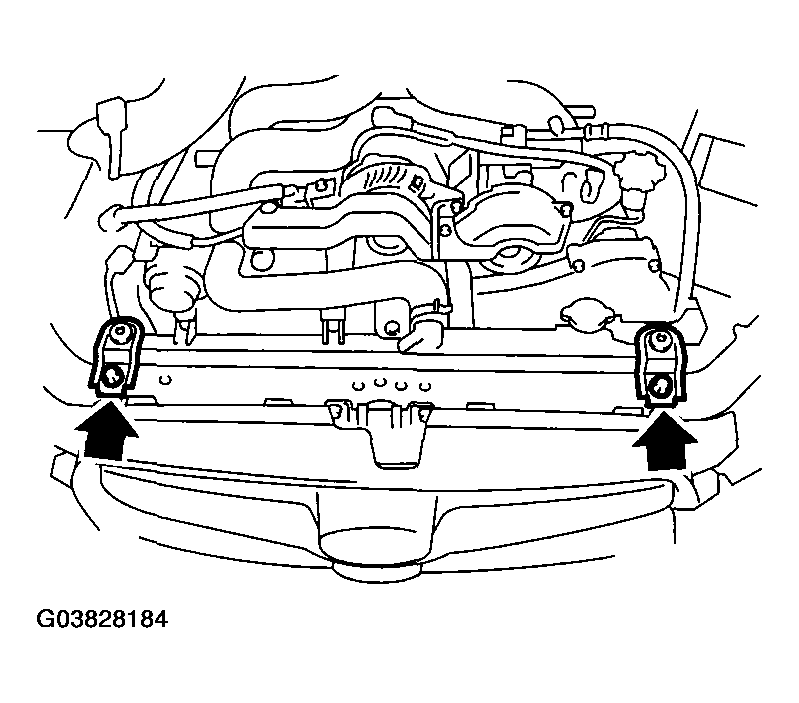

Install the radiator upper brackets and tighten the bolts.
Tightening torque: 12 N.m (1.2 kgf-m, 8.9 ft-lb)

Fig 2: Installing Radiator Upper Brackets And Tighten Bolts
Courtesy of SUBARU OF AMERICA, INC.

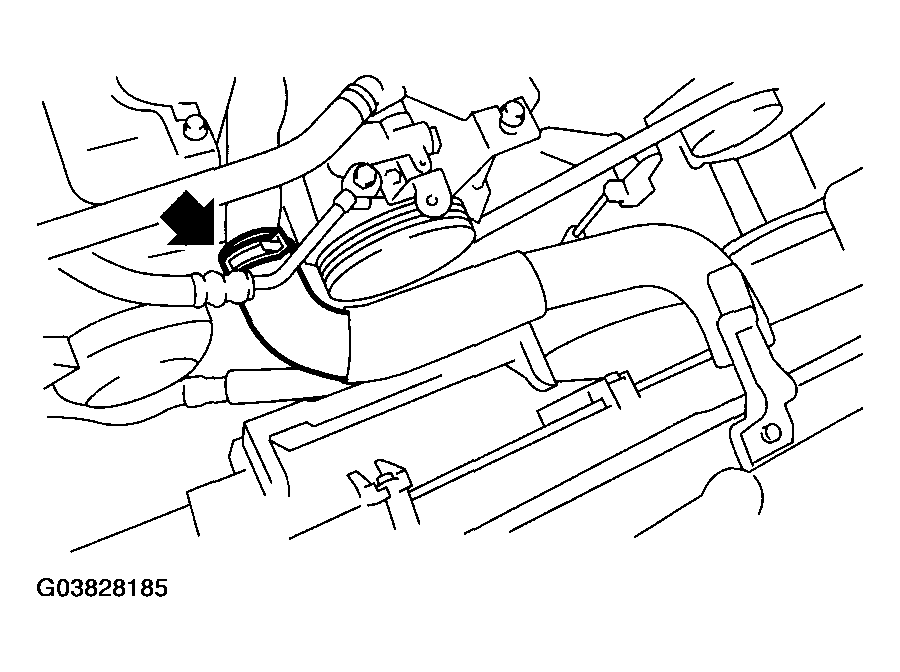

Connect the radiator inlet hose.

Fig 3: Connecting Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. < Ref. to INSTALLATION , Air Intake Duct. >

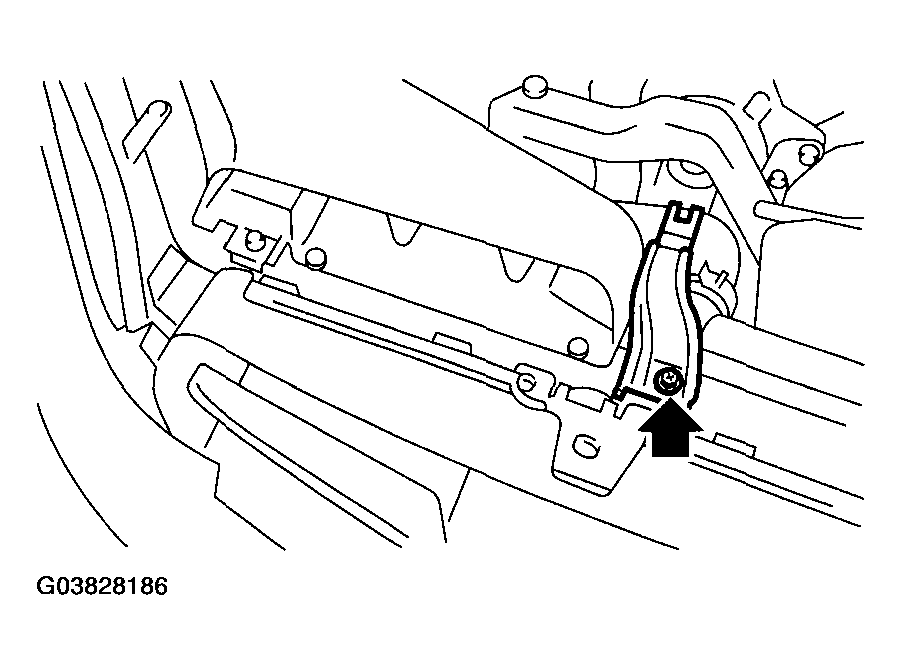

Install the hood stay holder.

Fig 4: Installing Hood Stay Holder
Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank. < Ref. to , INSTALLATION , Reservoir Tank. >
Connect the over flow hose.
Lift-up the vehicle.
Connect the ATF cooler hoses. (AT model)

Fig 5: Connecting ATF Cooler Hoses
Courtesy of SUBARU OF AMERICA, INC.

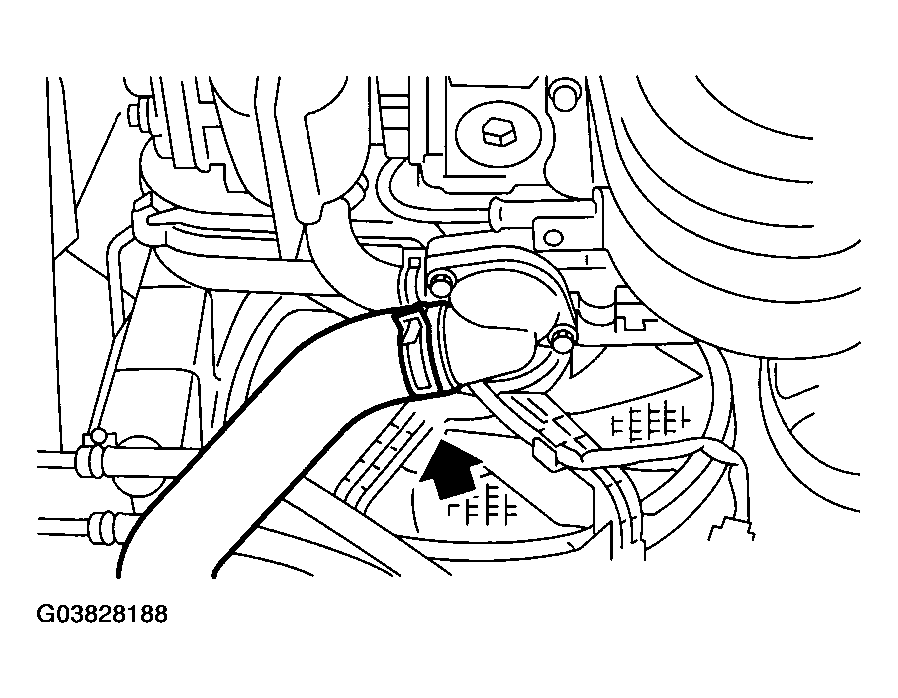

Connect the radiator outlet hose.

Fig 6: Connecting Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.

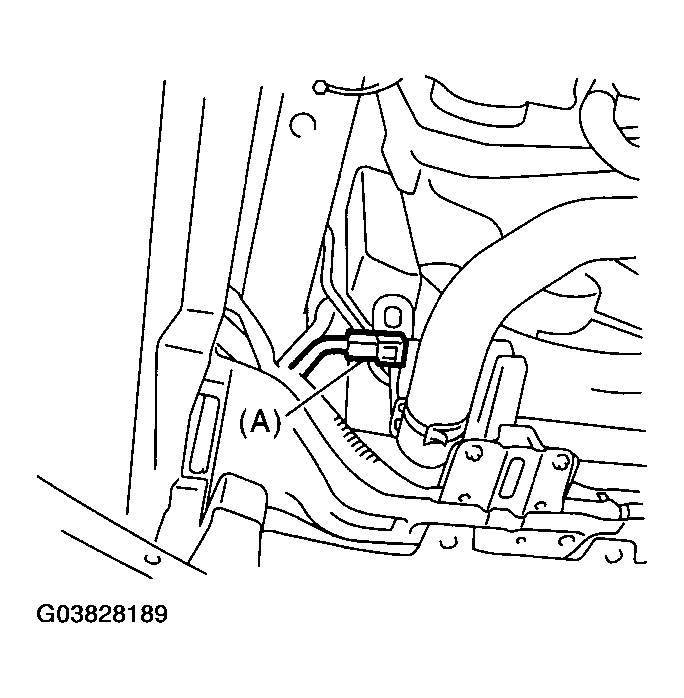

Connect the connector (A) to radiator main fan motor and connector (B) to sub fan motor.

Fig 7: Connecting Connector To Radiator Main Fan Motor And Connector To Sub Fan Motor (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

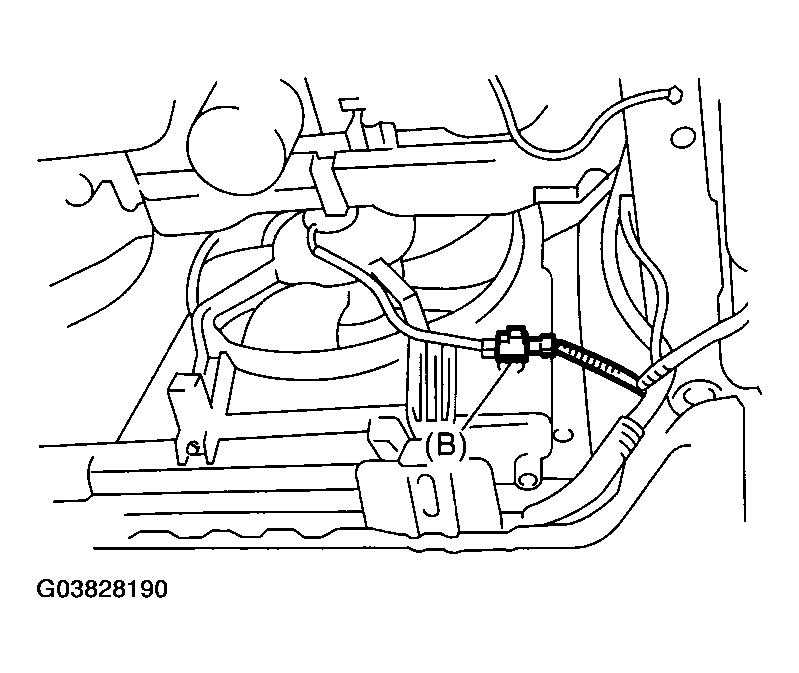

Fig 8: Connecting Connector To Radiator Main Fan Motor And Connector To Sub Fan Motor (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Lower the vehicle.

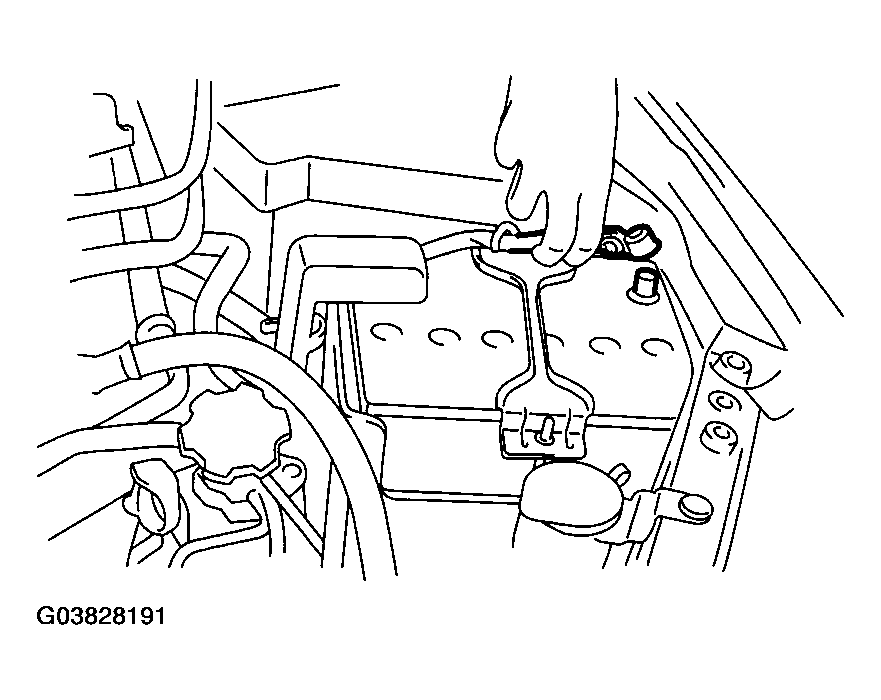

Connect the battery ground cable to battery.

Fig 9: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Fill with engine coolant. < Ref. to , FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Check the ATF level. < Ref. to INSPECTION , Automatic Transmission Fluid. >
