3.0 L Model

  1. Fit the tool to the belt tensioner mounting bolt.
  2. Turn the tool clockwise, and loosen the V-belt to remove.

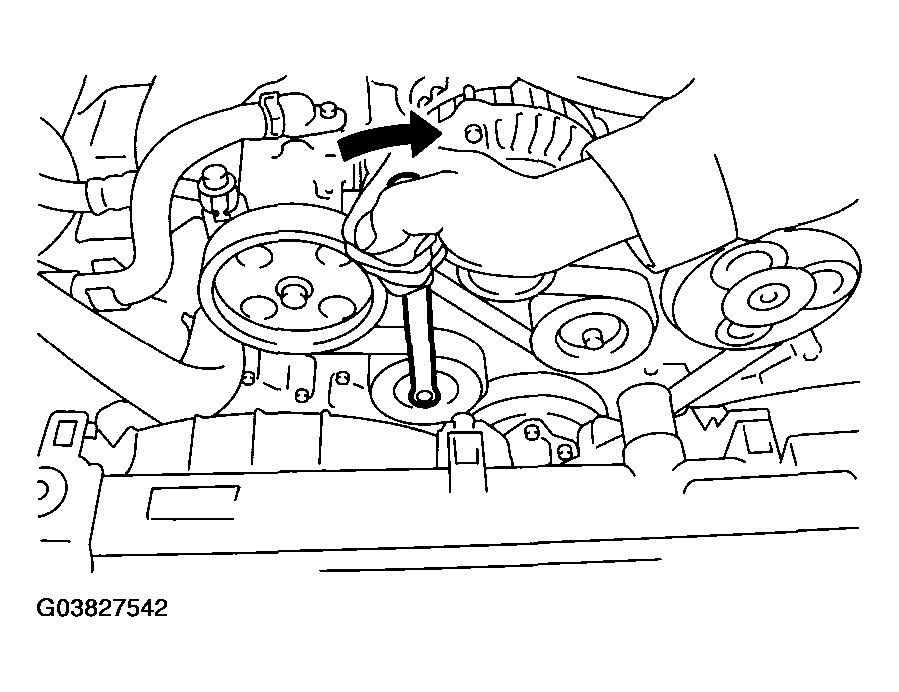

    Fig 1: Fitting Tool To Belt Tensioner Mounting Bolt
    G03827542Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the V-belt cover.
  4. Install in the reverse order of removal.

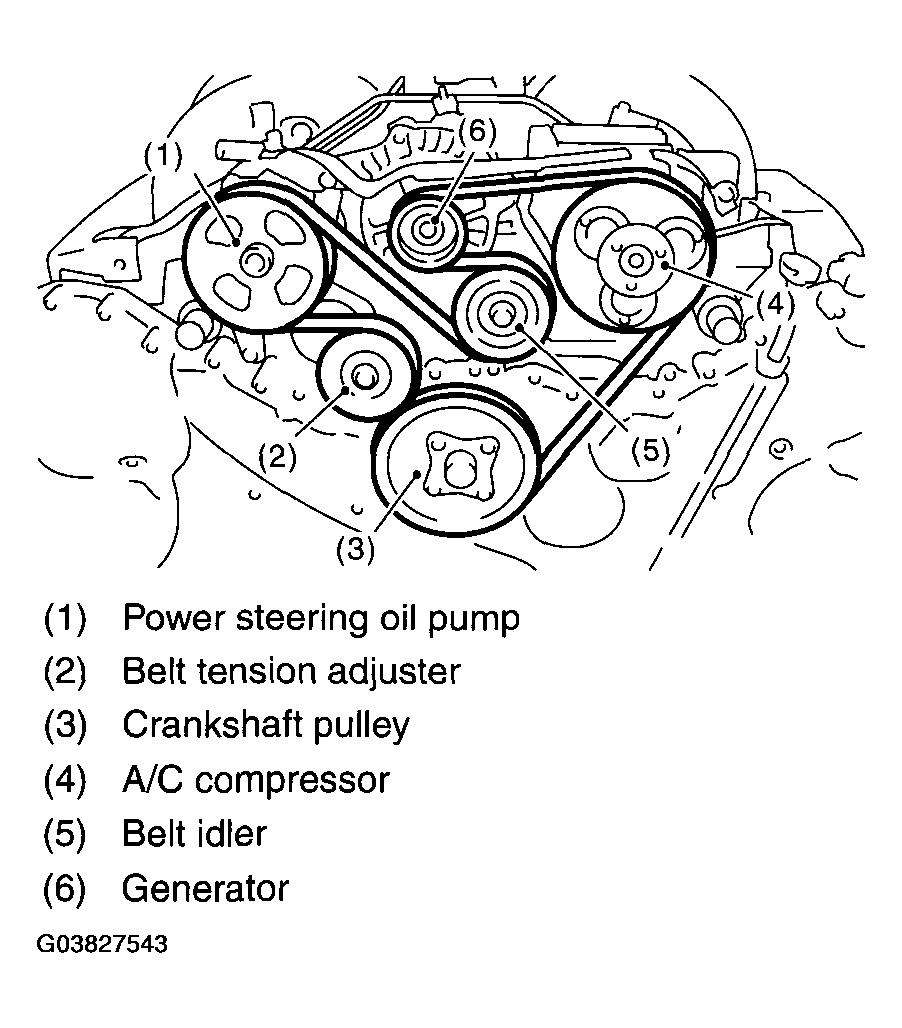

    Fig 2: Identifying Belt Routing
    G03827543Courtesy of SUBARU OF AMERICA, INC.
