Airbag Control Module: Removal

CAUTION:
  • Do not disassemble the airbag control module.
  • If the airbag control module is deformed or if water damage is suspected, replace the airbag control module with a new one.
  • Do not drop the airbag control module.
  • After removal, keep the airbag control module on a dry, clean surface away from moisture, heat and dust.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground cable from battery and wait for at least 20 seconds before starting work.
  3. Remove the console front panel and console side garnish. < Ref. to REMOVAL , Center Console. >
  4. Remove the screws and pull out the audio unit assembly to disconnect the connector for removal.

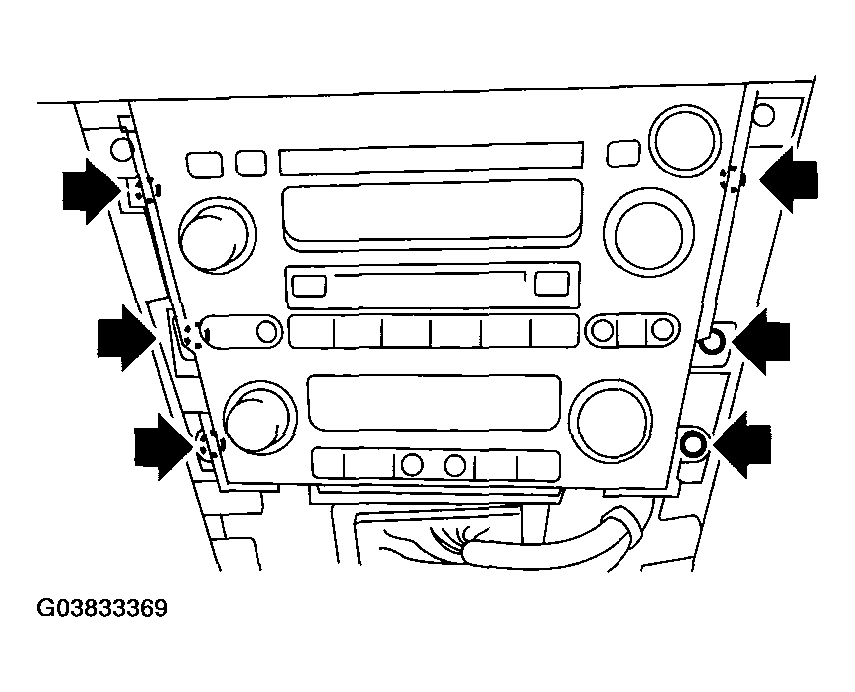

    Fig 1: Removing Screws & Audio Unit Assembly
    G03833369Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the connector from airbag control module.
  6. Remove the bolts and remove airbag control module.

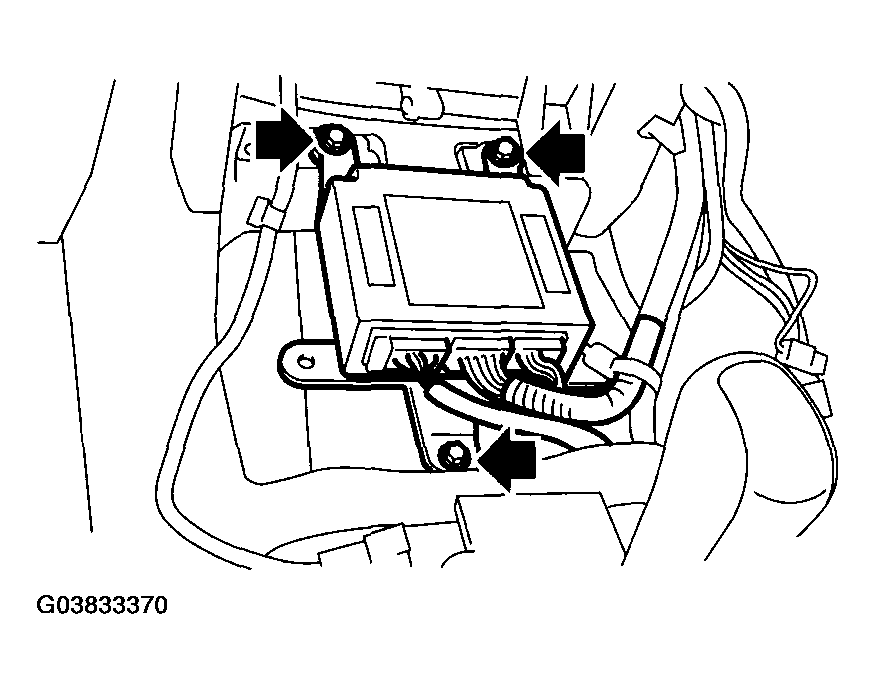

    Fig 2: Removing Airbag Control Module
    G03833370Courtesy of SUBARU OF AMERICA, INC.
