Front Sub Sensor: Removal

  1. Turn the ignition switch to OFF.
  2. Disconnect the ground cable from battery and wait for at least 20 seconds before starting work.
  3. Remove the front bumper face. < Ref. to FRONT BUMPER FACE , REMOVAL, Front Bumper. >
  4. Remove the bolts, and then detach the front sub sensor.

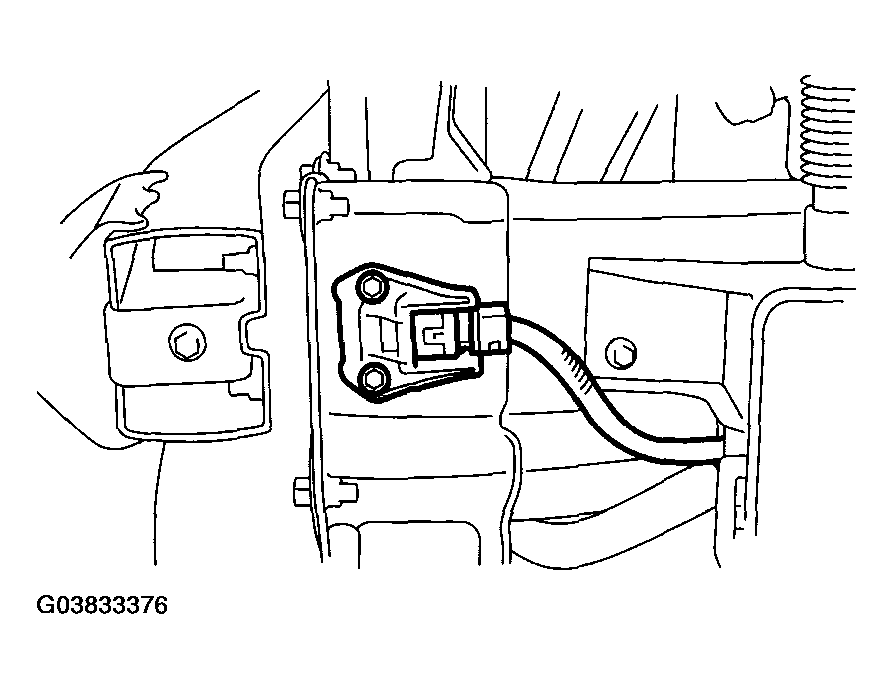

    Fig 1: Detaching Front Sub Sensor
    G03833376Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the connector from front sub sensor.
