Side Airbag Module: Installation

CAUTION:

Before handling the airbag module, < Ref. to , CAUTION , General Description. >
Be sure to perform the system calibration for occupant detection system after passenger's seat installation. < Ref. to SYSTEM CALIBRATION , OPERATION, Subaru Select Monitor. >

Ensure that there are no foreign articles on side airbag module.
Install the side airbag module (A) to backrest frame assembly.
Tightening torque: 6.0 N.m (0.61 kgf-m, 4.4 ft-lb)

Fig 1: Installing Side Airbag Module To Backrest Frame Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the side airbag harness to backrest frame assembly.
NOTE: Secure the harness to its original position of seat.

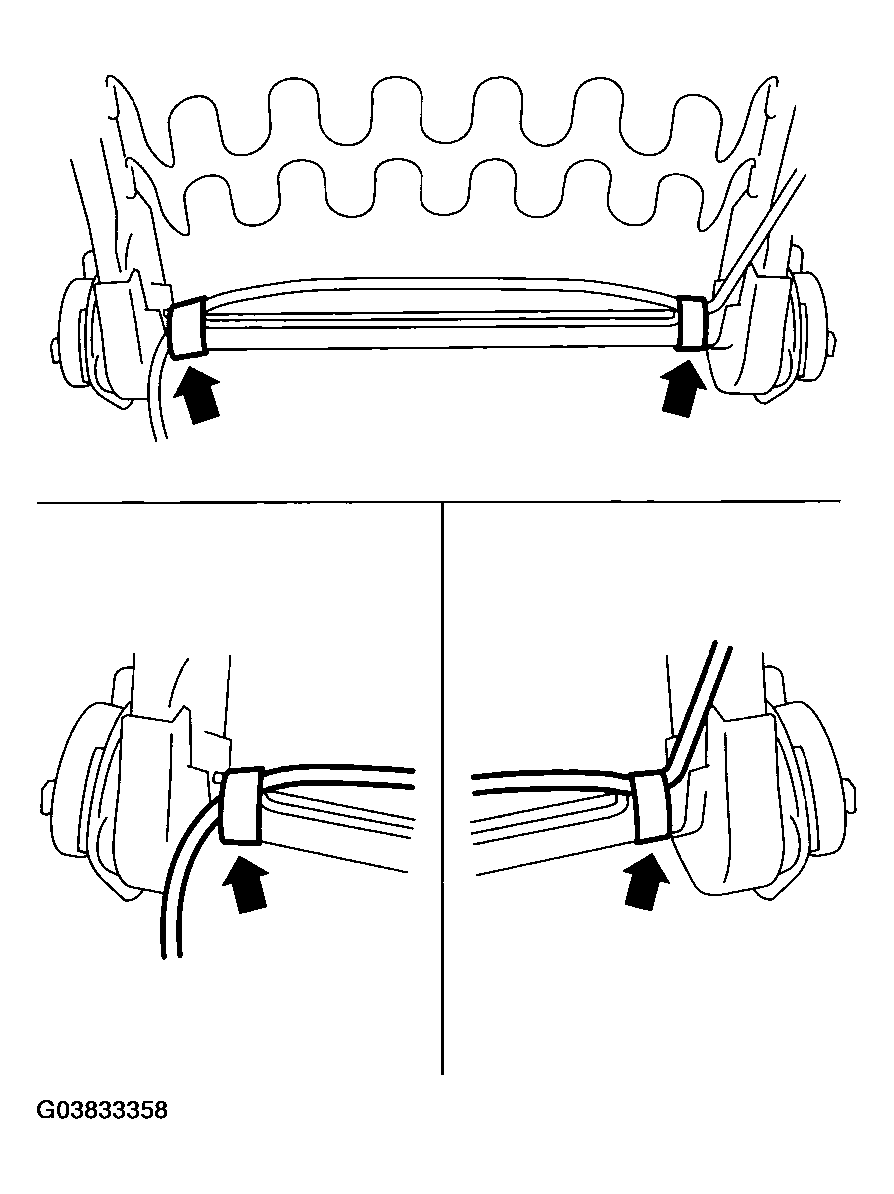

Fig 2: Installing Side Airbag Harness To Backrest Frame Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the backrest cover. < Ref. to ASSEMBLY , Front Seat. >
Install the side airbag harness to slide rail IN (A), and then secure the connector to the bracket on back side of seat cushion assembly.

Fig 3: Installing Side Airbag Harness To Slide Rail
Courtesy of SUBARU OF AMERICA, INC.
Recline the seat or slide it backward and forward, and check there is no contact between the seat backrest assembly, cushion cover assembly and side airbag harness.
