Occupant Detection System (Diagnostics): Electrical Component Location: Location

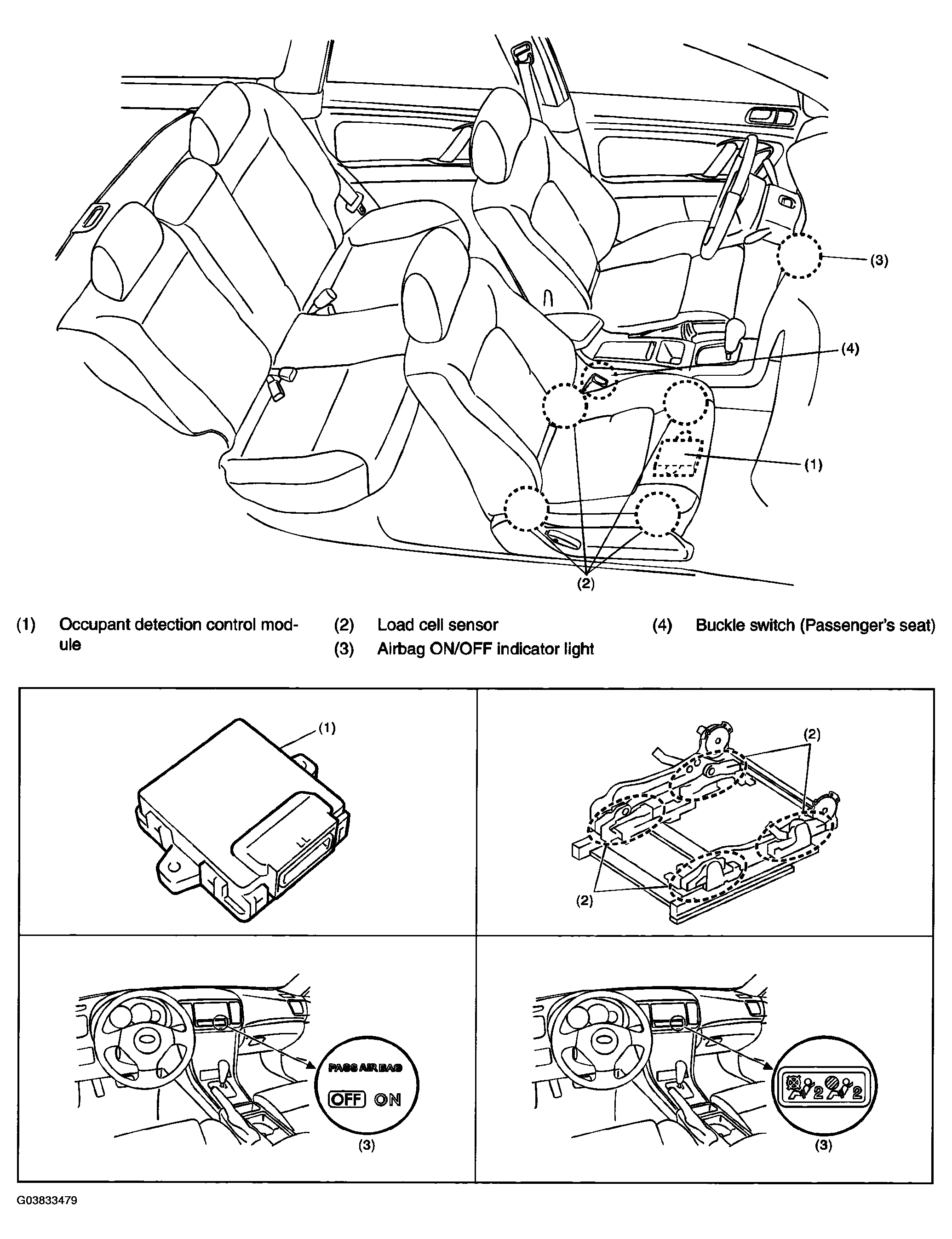

Fig 1: Identifying Electrical Component Location
G03833479Courtesy of SUBARU OF AMERICA, INC.
