Rear Bushing

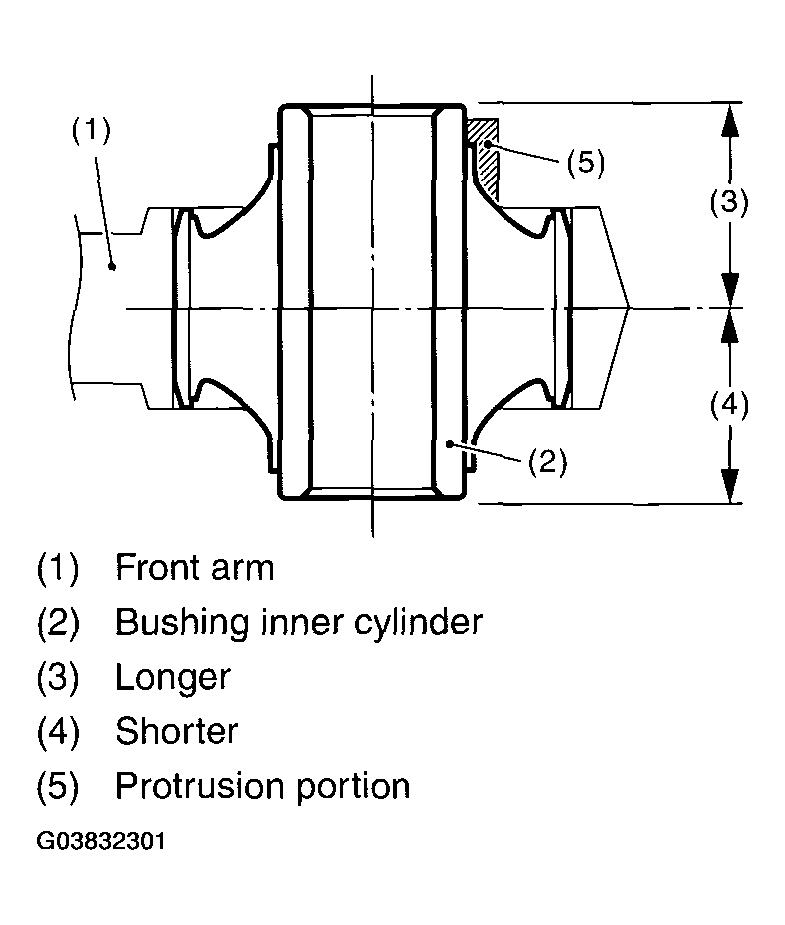

1. Install the rear bushing with its longer inner cylinder faced upward and its shorter one faced downward and protruding part rearward as shown in Fig 1 .
   Fig 1: Installing Rear Bushing

   Courtesy of SUBARU OF AMERICA, INC.
2. Align the center of rear bushing recess portion with the aligning mark on the front arm.
   Fig 2: Identifying Alignment Mark

   Courtesy of SUBARU OF AMERICA, INC.
3. Using the ST and a press, install the rear bushing.

ST1 20299AG000 REMOVER

ST2 20299AG010 BASE

Fig 3: Installing Rear Bushing Using ST

Courtesy of SUBARU OF AMERICA, INC.
