Extension Case and Intermediate Case: Disassembly

Take out the transfer clutch and multi-plate clutch hub assembly by lightly tapping the end of rear drive shaft.
NOTE: Be careful not to damage the oil seal of extension.
Remove snap ring using ST and press.
ST 18762AA000 COMPRESSOR SPECIAL TOOL

Fig 1: Removing Snap Ring Using Compressor Special Tool ST 18762AA000
Courtesy of SUBARU OF AMERICA, INC.
Supply compressed air to remove the clutch piston.

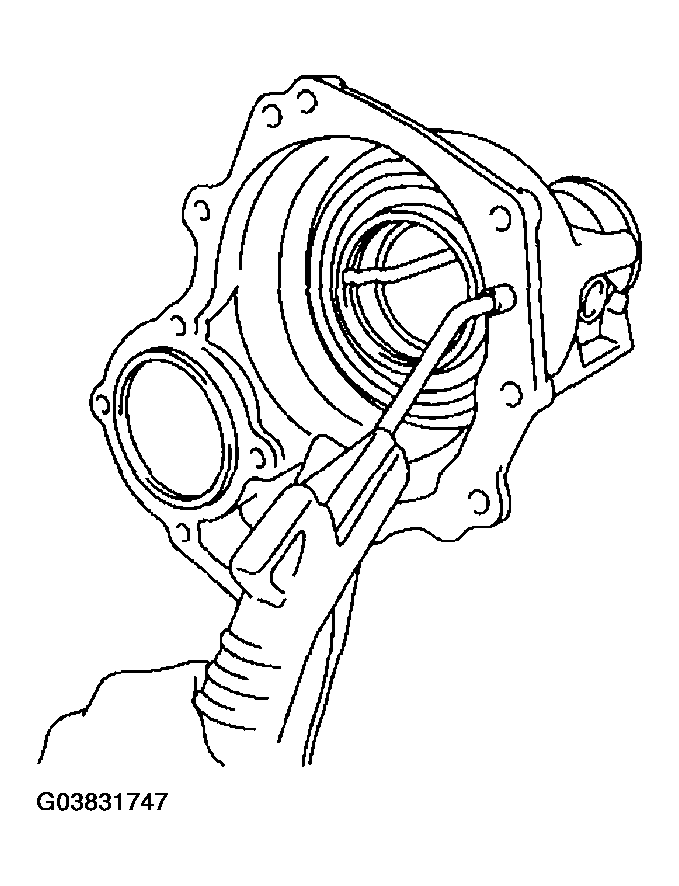

Fig 2: Supplying Compressed Air For Removing Clutch Piston
Courtesy of SUBARU OF AMERICA, INC.
Remove the dust cover from extension case.
Remove the oil seal from extension case.
