Differential Case Assembly

Remove the taper roller bearing using ST and press.
ST 498077000 REMOVER

Fig 1: Removing Taper Roller Bearing Using Remover ST 498077000
Courtesy of SUBARU OF AMERICA, INC.
Secure the case in a vise and remove the hypoid driven gear tightening bolts, then separate the hypoid driven gear case (RH) and case (LH).

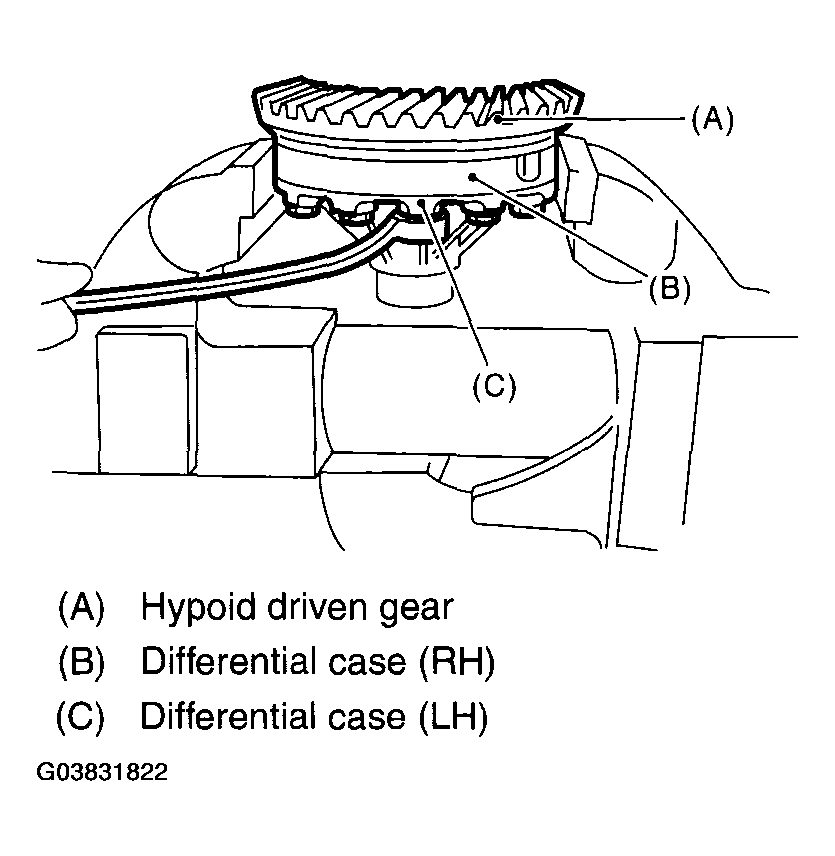

Fig 2: Removing Hypoid Driven Gear Case (RH) And Case (LH)
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and shaft, and then remove the differential bevel gear, washer and differential bevel pinion.

Fig 3: Removing Straight Pin And Shaft
Courtesy of SUBARU OF AMERICA, INC.
