Front Vehicle Speed Sensor: Removal

Remove the transmission assembly from vehicle. < Ref. to , REMOVAL , Automatic Transmission Assembly. >
Remove the rear vehicle speed sensor.
NOTE: Secure the harness of the rear vehicle speed sensor to the transmission proper using wire etc.

Fig 1: Securing Harness Of Rear Vehicle Speed Sensor To Transmission Proper Using Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the extension case.

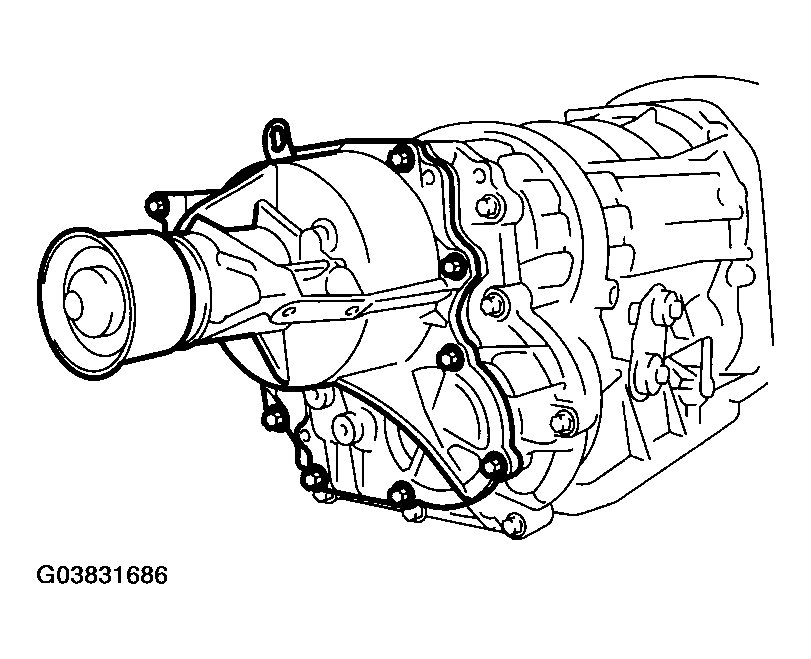

Fig 2: Removing Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the intermediate case.

Fig 3: Removing Intermediate Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the center differential carrier. < Ref. to , REMOVAL , Center Differential Carrier. >
Lay along the transmission case, and then remove the oil pan.
Remove the old gasket on the oil pan and transmission case completely.
Disconnect the front vehicle speed sensor connector.

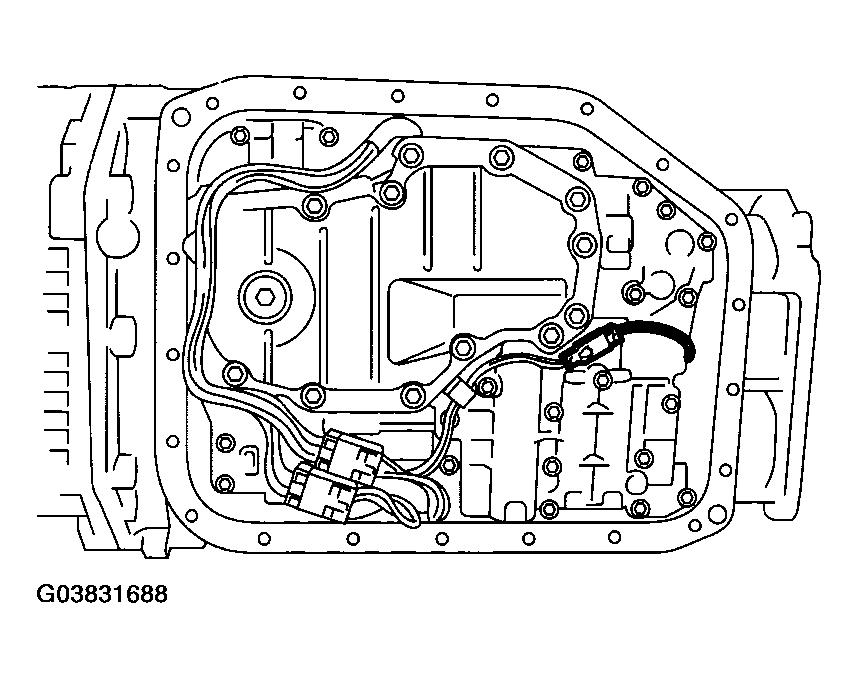

Fig 4: Disconnecting Front Vehicle Speed Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the front vehicle speed sensor securing bolt.

Fig 5: Removing Front Vehicle Speed Sensor Securing Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the front vehicle speed sensor through the hole of the AT transmission main case.
