Automatic Transmission (5AT)
›
Automatic Transmission
›
General Description
›
Components With Torque Specifications
›
Transfer Case, Extension Case & Reduction Gear
Transfer Case, Extension Case & Reduction Gear

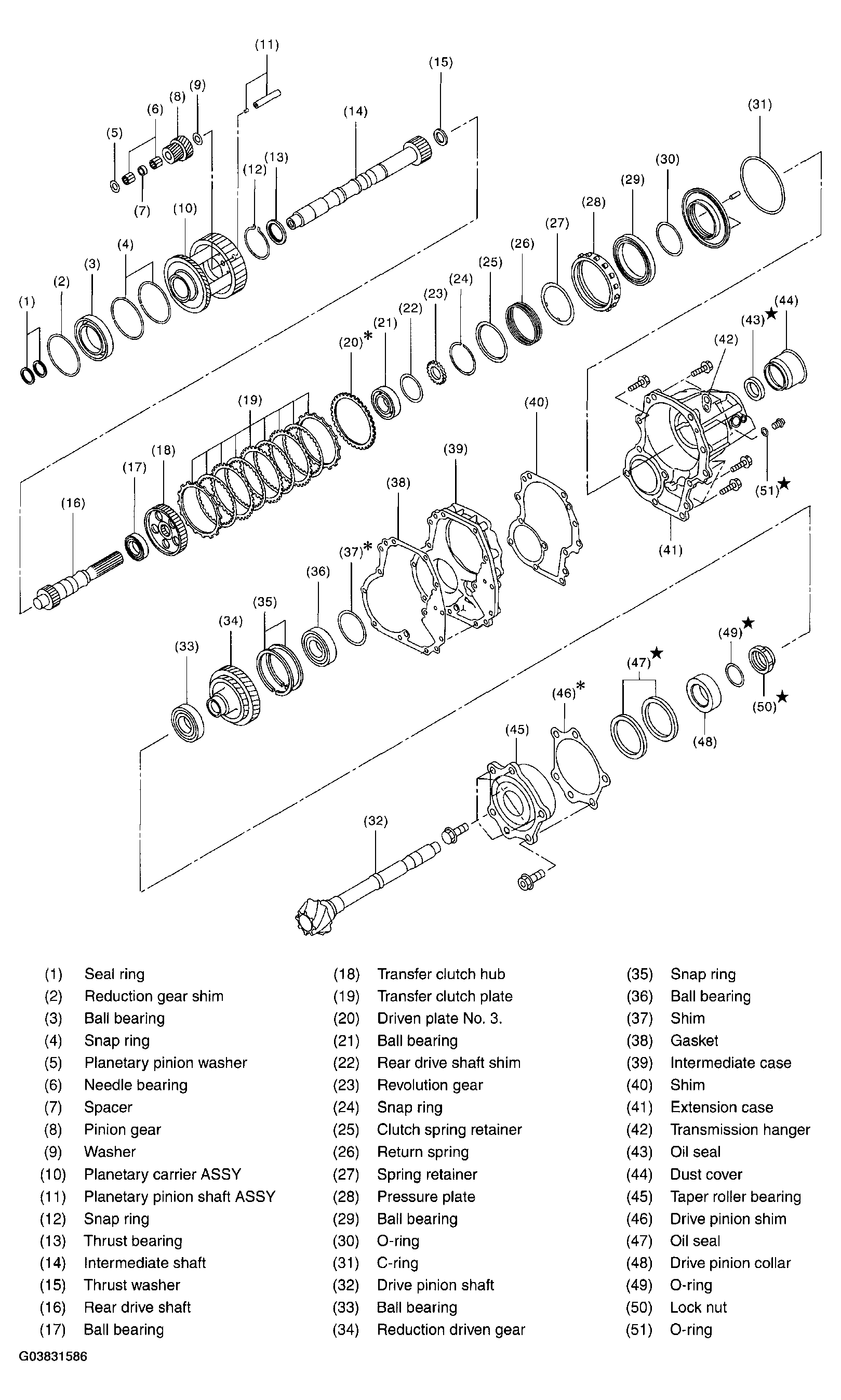

Fig 1: Identifying Transfer Case, Extension Case & Reduction Gear Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
