Automatic Transmission (5AT)
›
Automatic Transmission
›
General Description
›
Components With Torque Specifications
›
Transmission Control Module
Transmission Control Module

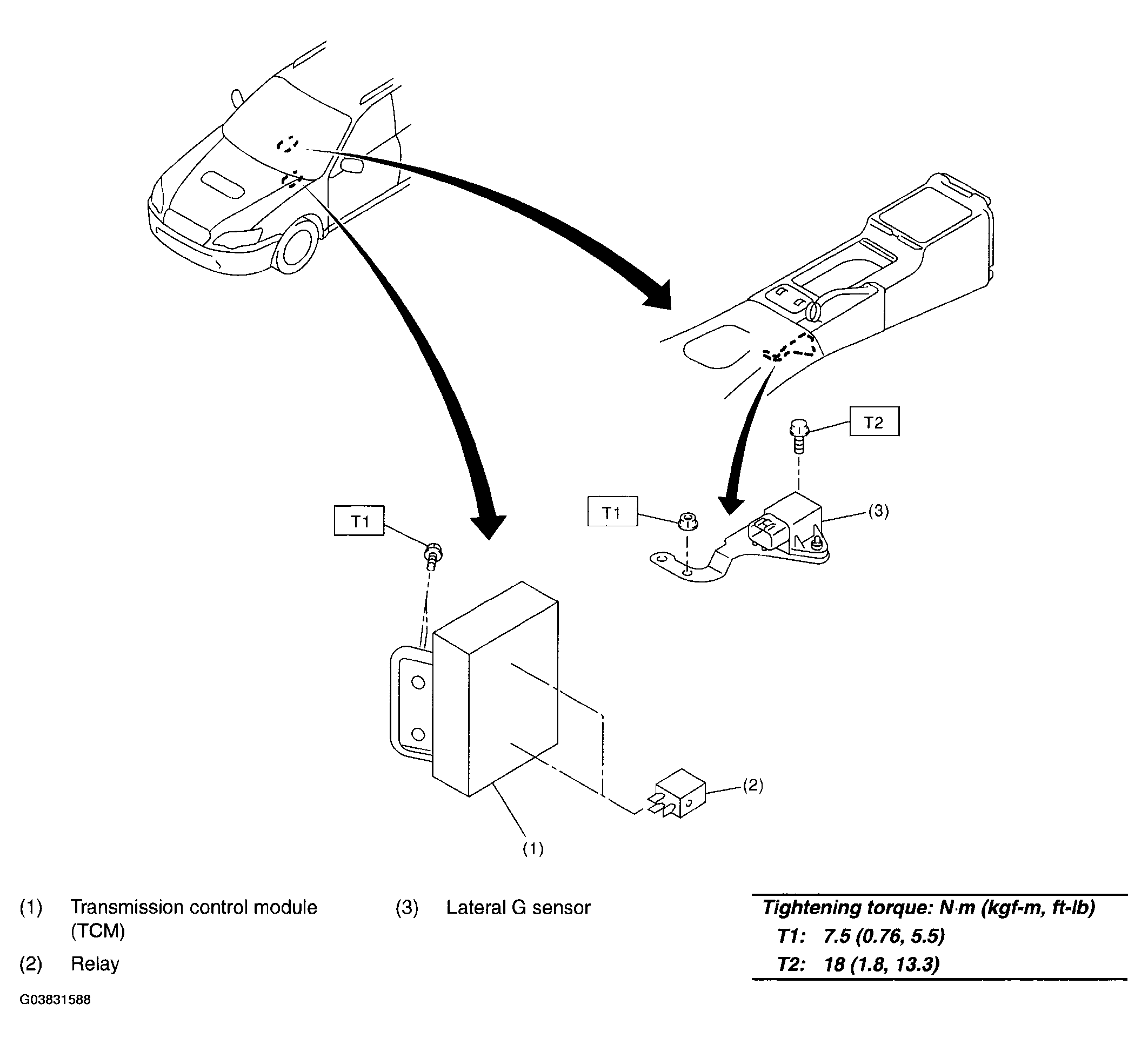

Fig 1: Transmission Control Module, Relay & Lateral G Sensor With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
