Lateral G Sensor: Removal
Remove the console box. < Ref. to
REMOVAL
, Console Box. >
Disconnect the connector from lateral G sensor.

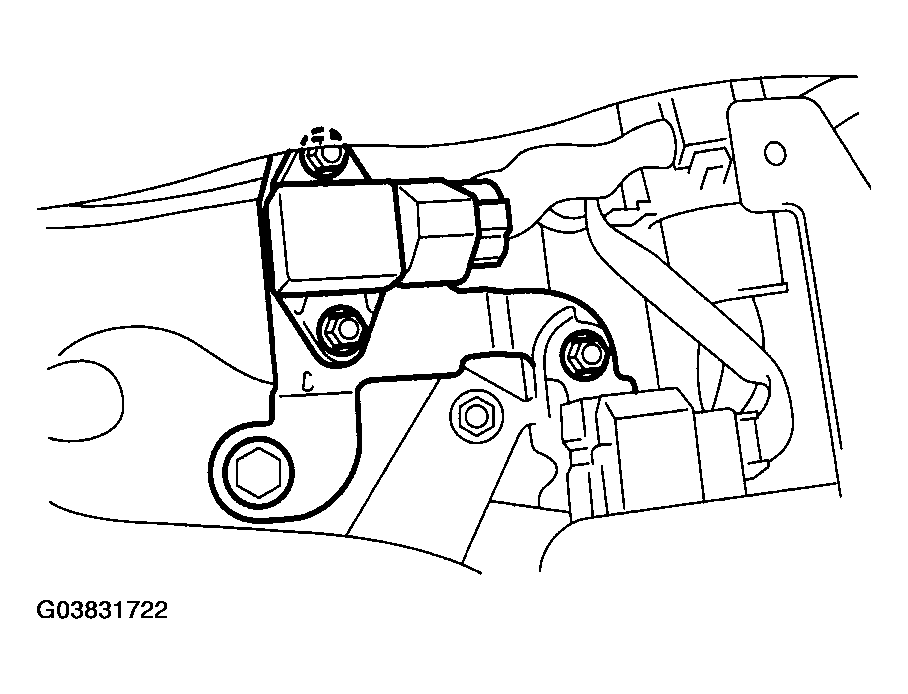

Fig 1: Disconnecting Connector From Lateral G Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the lateral G sensor.
