Reduction Driven Gear: Disassembly

Remove the ball bearing from reduction driven gear using ST.
ST 498077310 REMOVER

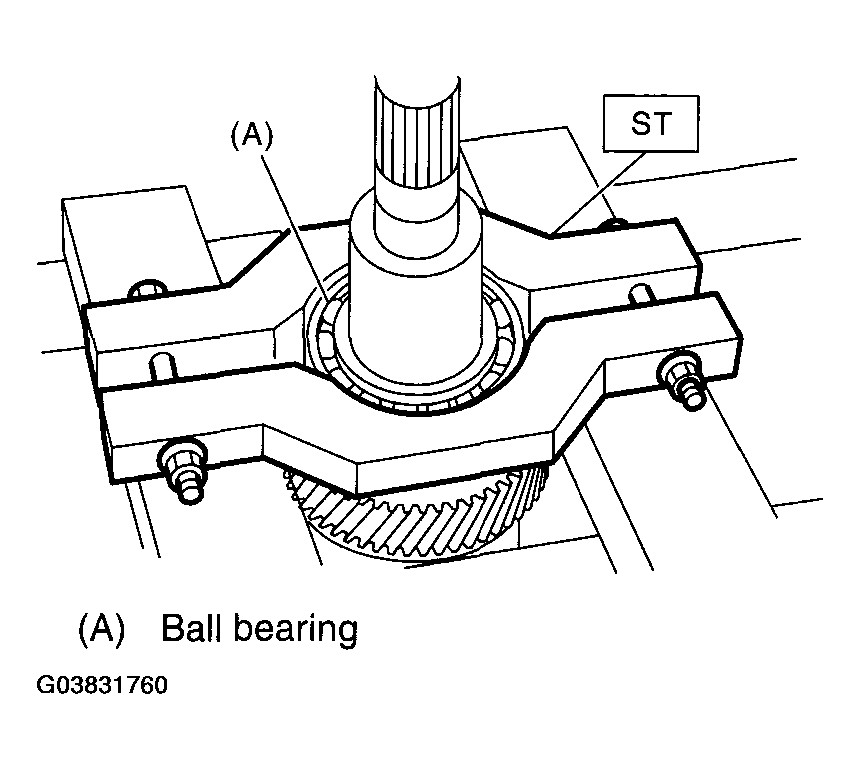

Fig 1: Removing Ball Bearing From Reduction Driven Gear Using Remover ST 498077310
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing on reverse side with the same procedure in step 1).

Fig 2: Removing Ball Bearing From Reverse Side Using Remover ST 498077310
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring from reduction driven gear.
