Torque Converter Assembly: Installation

  1. When the oil pump shaft is removed, install the shaft to torque converter.
    NOTE: Make sure the clip is firmly inserted.
  2. Install the oil pump shaft to torque converter, and then make sure that the clip is secured on groove.
  3. Apply ATF to the revolution and sliding surface oil pump shaft.
  4. Holding the torque converter assembly by hand, lightly rotate the torque converter assembly to engage the oil pump rotor.
  5. Check the protruding dimension of the torque converter assembly.

    Dimension A:

    Less than 8 mm (0.31 in)

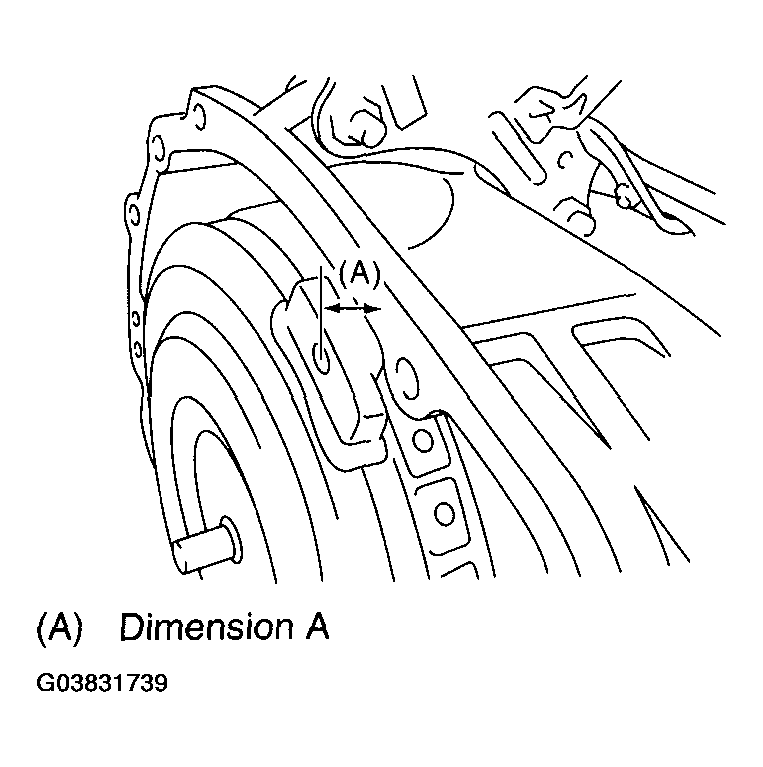

    Fig 1: Identifying Protruding Dimension Of Torque Converter Assembly
    G03831739Courtesy of SUBARU OF AMERICA, INC.
  6. Install the transmission assembly into the vehicle. < Ref. to , INSTALLATION , Automatic Transmission Assembly. >
