Torque Converter Assembly: Removal

  1. Remove the transmission assembly from vehicle. < Ref. to , REMOVAL , Automatic Transmission Assembly. >
  2. Pull out the torque converter and oil pump shaft horizontally.
    NOTE:
    • Be sure not to scratch the inside of bush in oil pump shaft.
    • Be careful that the oil pump shaft may drawn out simultaneously.

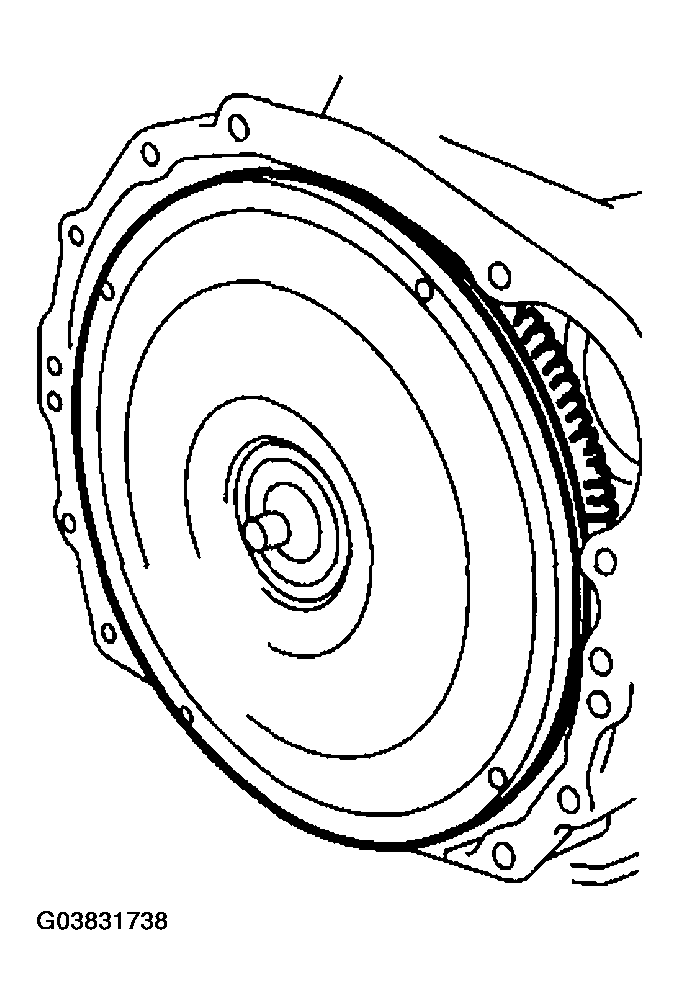

    Fig 1: Removing Torque Converter Assembly
    G03831738Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil pump shaft from torque converter as necessary.
