Automatic Transmission - Mechanism & Function (5AT)
›
Gear Train
›
Operation
›
Operation Table
Operation Table

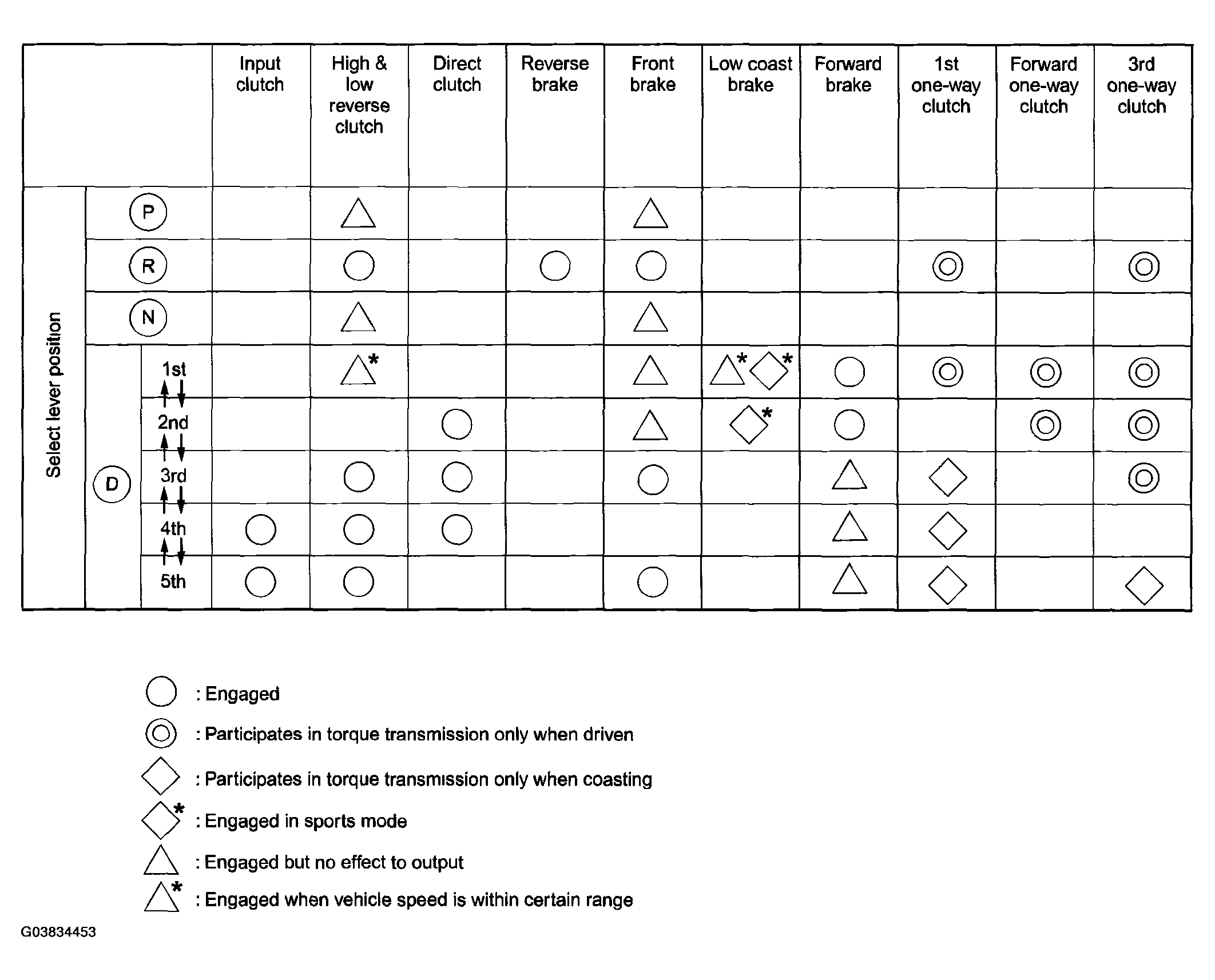

Fig 1: Gear Train Operation Table
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
