Input Clutch: Construction

The input clutch consists of an input clutch piston, retainer spring, drive plates, driven plates, and a retaining plate.

This clutch engages to connect the front internal gear and mid internal gear in the 4th and 5th speeds.

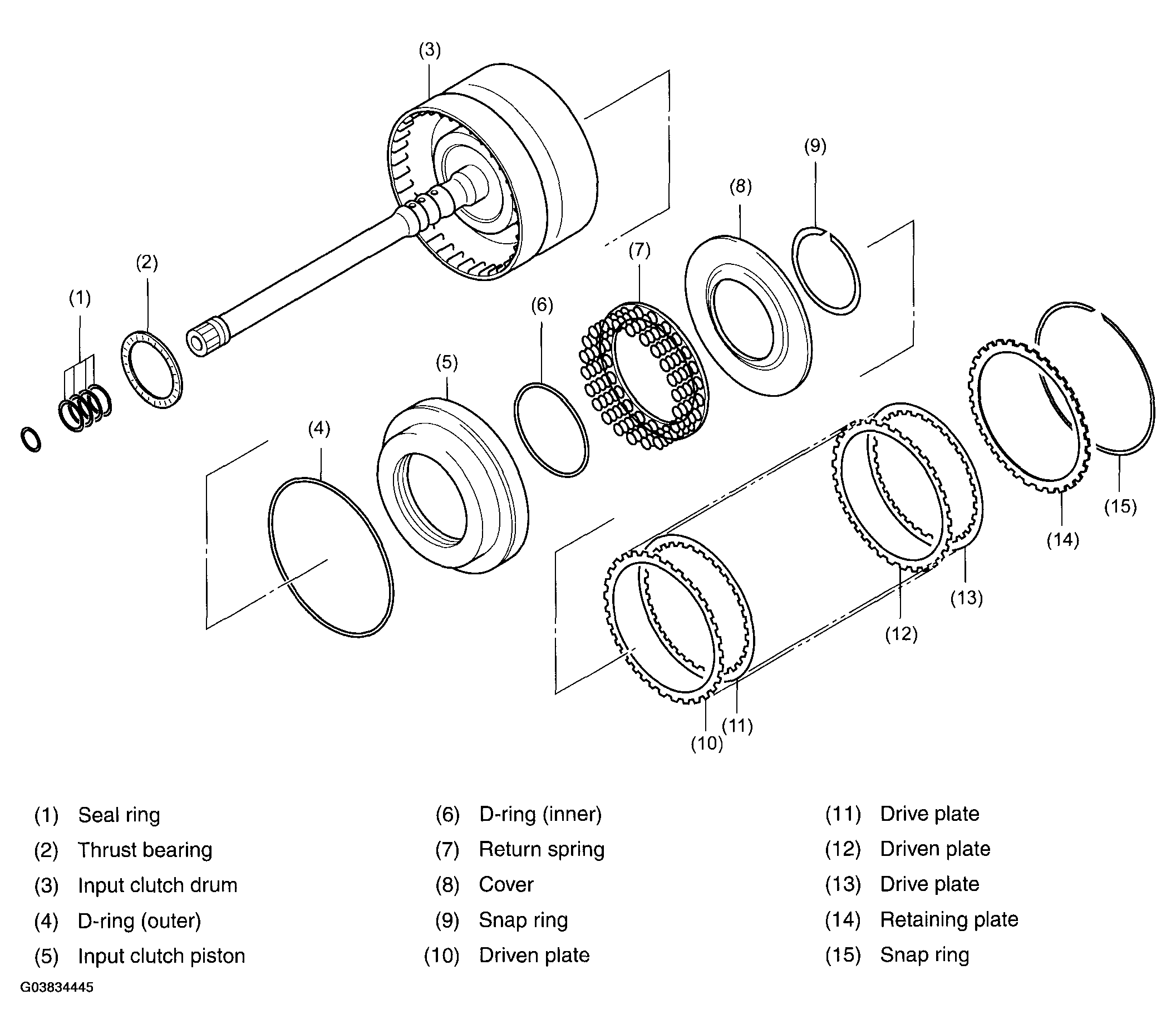

Fig 1: Exploded View Of Input Clutch

Courtesy of SUBARU OF AMERICA, INC.
