Automatic Transmission - Mechanism & Function (5AT)
›
Transmission Control Module (TCM)
›
Schematic Diagram
Schematic Diagram

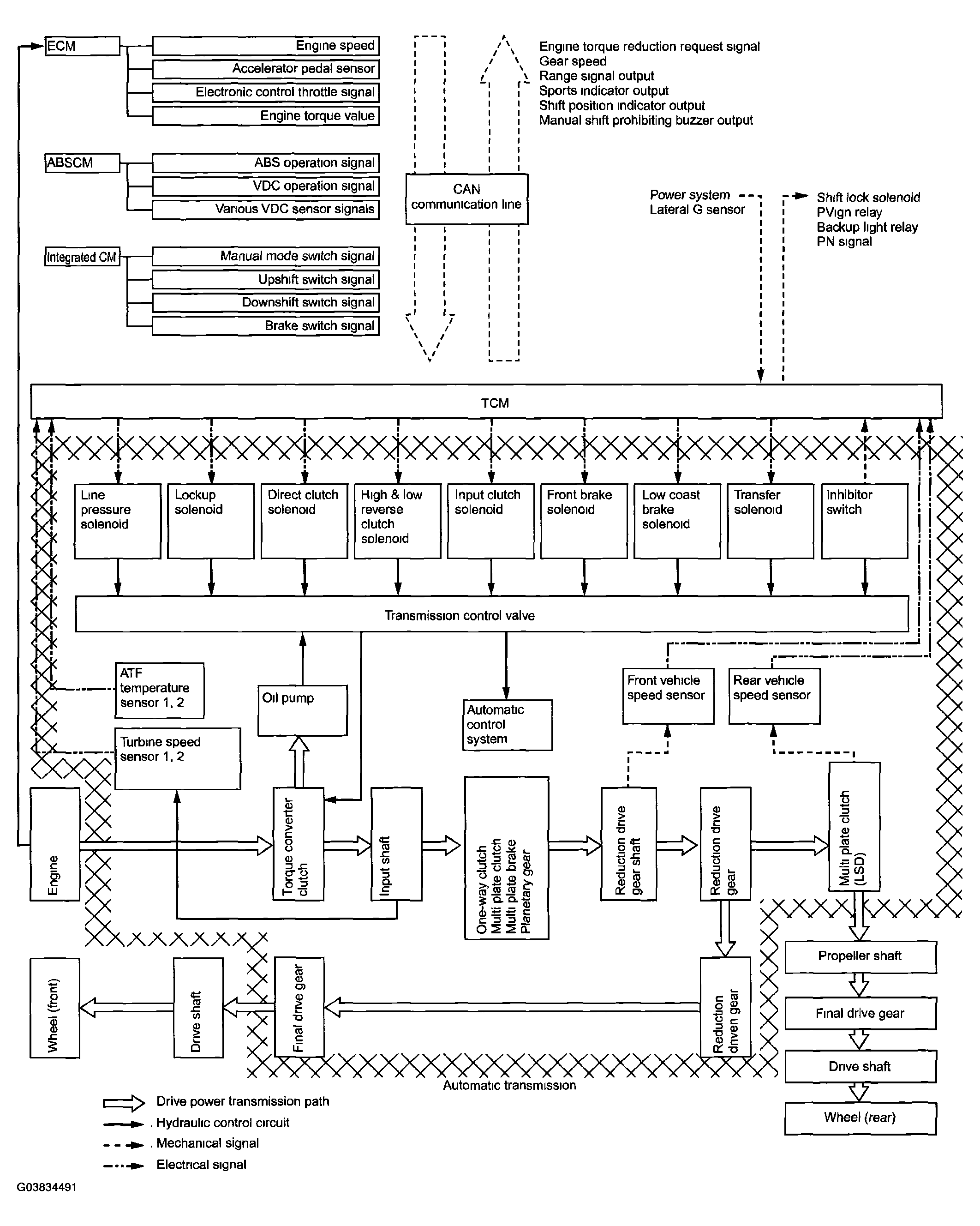

Fig 1: Schematic Diagram Of Transmission Control Module (TMC)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
