Crankshaft Position Sensor: Removal

1. Remove the collector cover.
2. Disconnect the ground cable from battery.

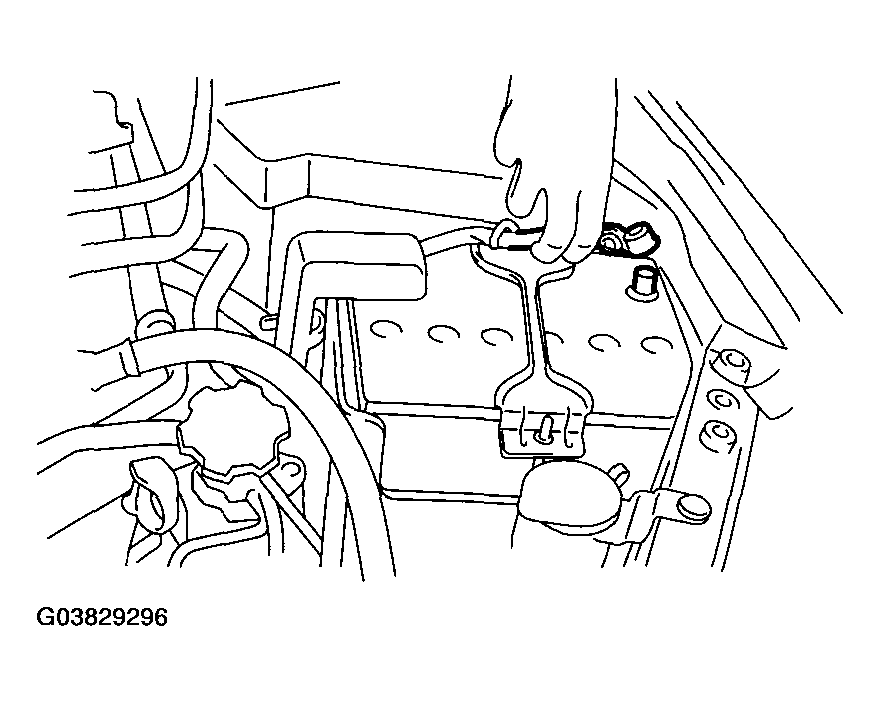

   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the generator. < Ref. to REMOVAL , Generators
4. Remove the bolt which installs crankshaft position sensor to cylinder block.

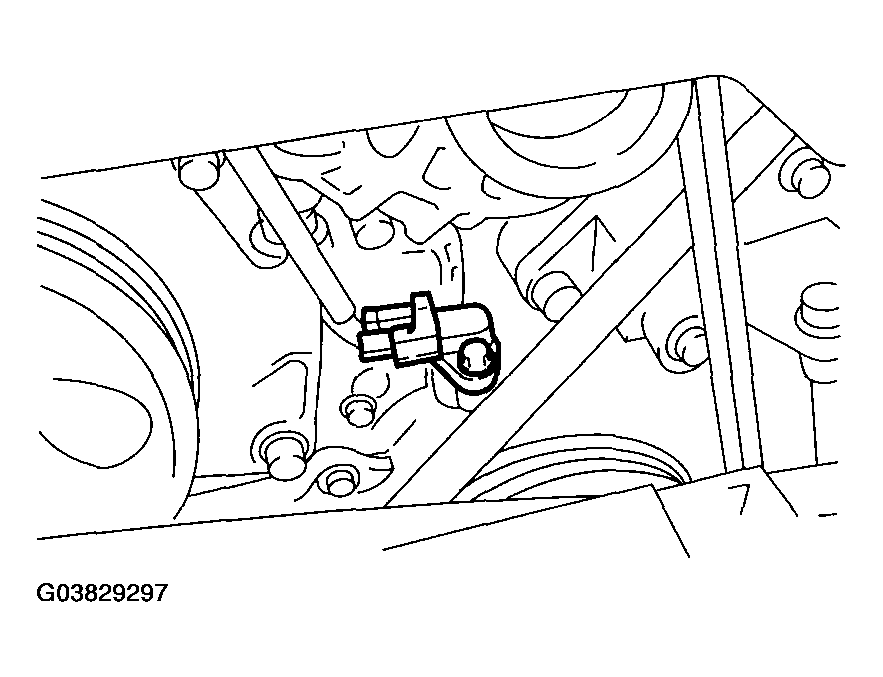

   Fig 2: Removing Bolt

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the crankshaft position sensor, and disconnect the connector from it.

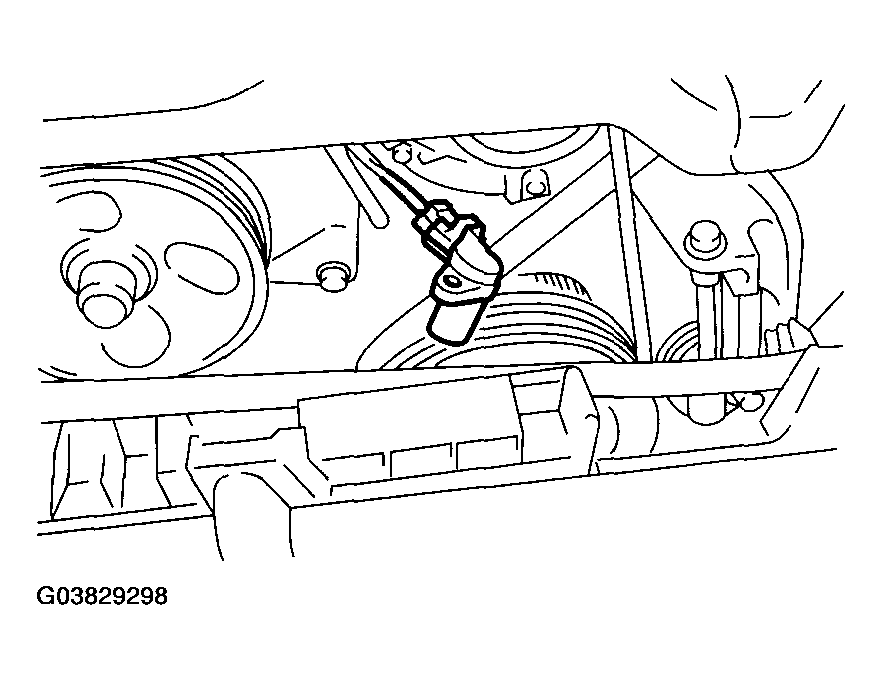

Fig 3: Removing Crankshaft Position Sensor

Courtesy of SUBARU OF AMERICA, INC.
