Control Valve Body: Installation

Check the control valve body for dust and other foreign matters.
Install the control valve body to transmission by equally tightening the bolts.
Tightening torque:

8 N.m (0.8 kgf-m, 5.8 ft-lb)

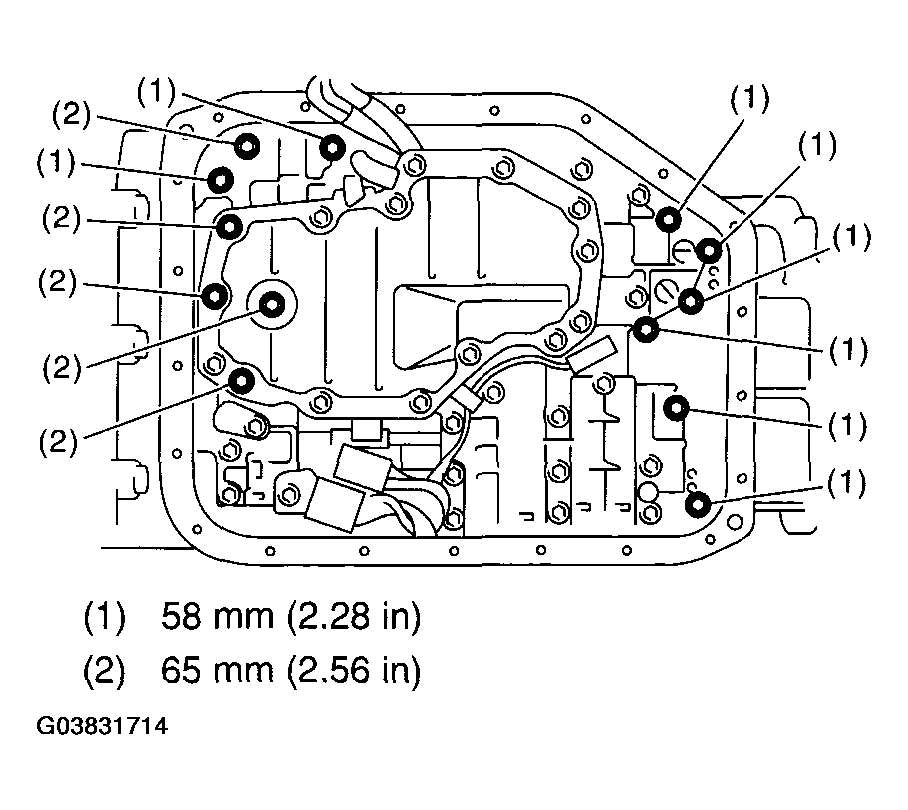

Fig 1: Installing Control Valve Body To Transmission
Courtesy of SUBARU OF AMERICA, INC.
Connect the control valve connector.

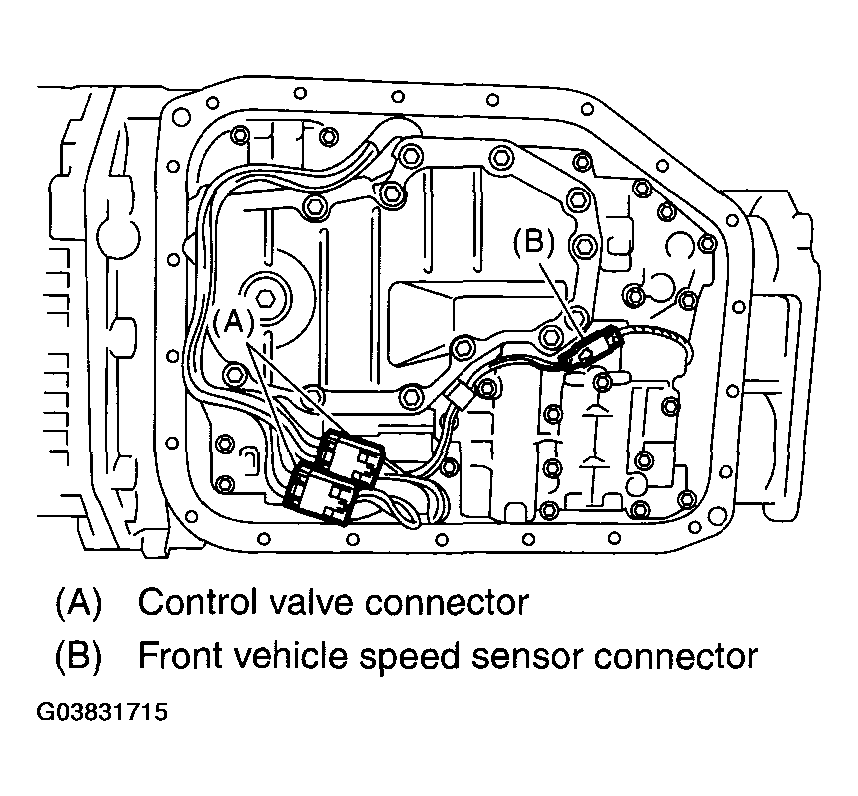

Fig 2: Connecting Control Valve Connector
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at the specified position of oil pan.

Fig 3: Attaching Magnet At Specified Position Of Oil Pan
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to the oil pan.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020)

Fig 4: Applying Liquid Gasket To Oil Pan
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan by equally tightening the bolts.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Pour ATF through the oil charge pipe.
Specified and recommended fluid:

< Ref. to , SPECIFICATION , General Description.>

Capacity:

Fill the same amount of the drained ATF.
Check the ATF level.
< Ref. to , AUTOMATIC TRANSMISSION FLUID . >
Execute the learning control promotion. < Ref. to , PROCEDURE , Learning Control. >
