Front Vehicle Speed Sensor: Installation

Install the front vehicle speed sensor.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

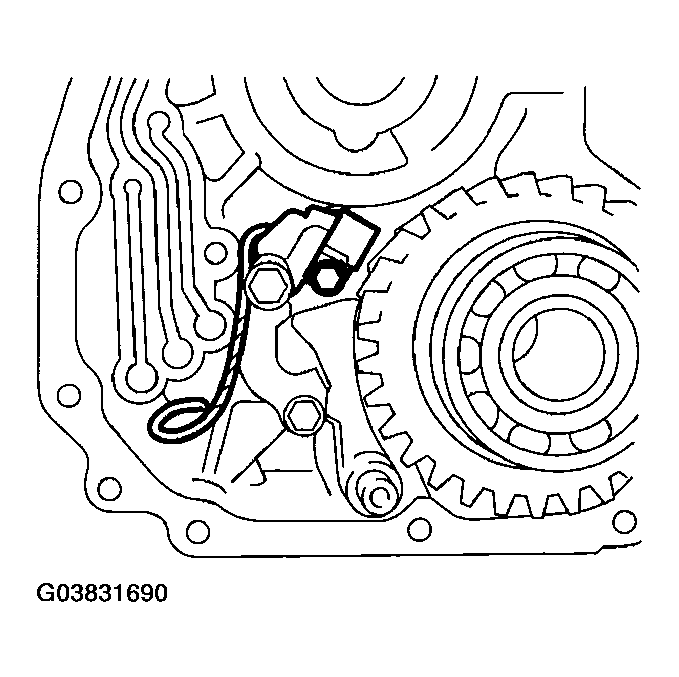

Fig 1: Installing Front Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect the front vehicle speed sensor connector.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020)

Fig 2: Applying Proper Amount Of Liquid Gasket To Entire Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan by equally tightening the bolts.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Install the center differential carrier. < Ref. to , INSTALLATION , Center Differential Carrier. >
Install the intermediate case.
Tightening torque:

25 N.m (2.5 kgf-m, 18 ft-lb)

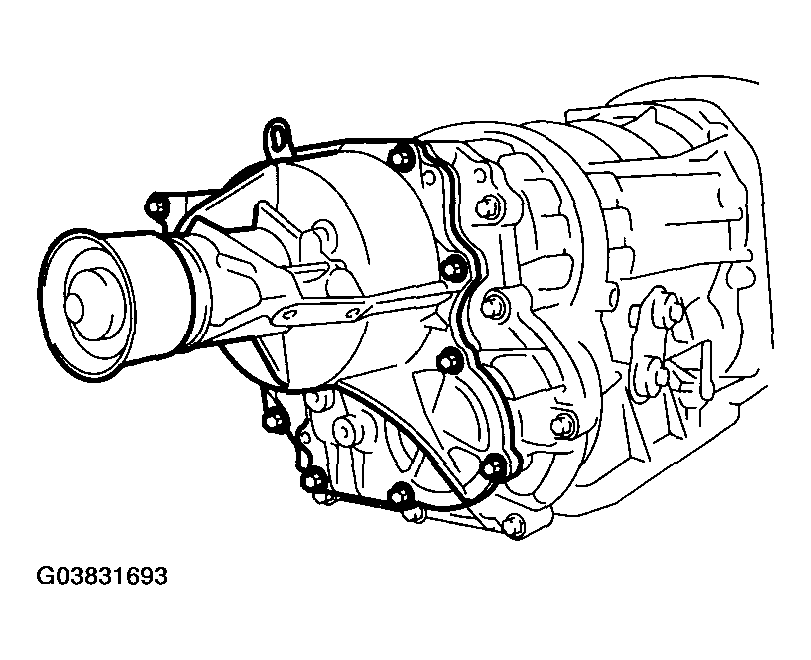

Fig 3: Installing Intermediate Case
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case.
Tightening torque:

25 N.m (2.5 kgf-m, 18 ft-lb)

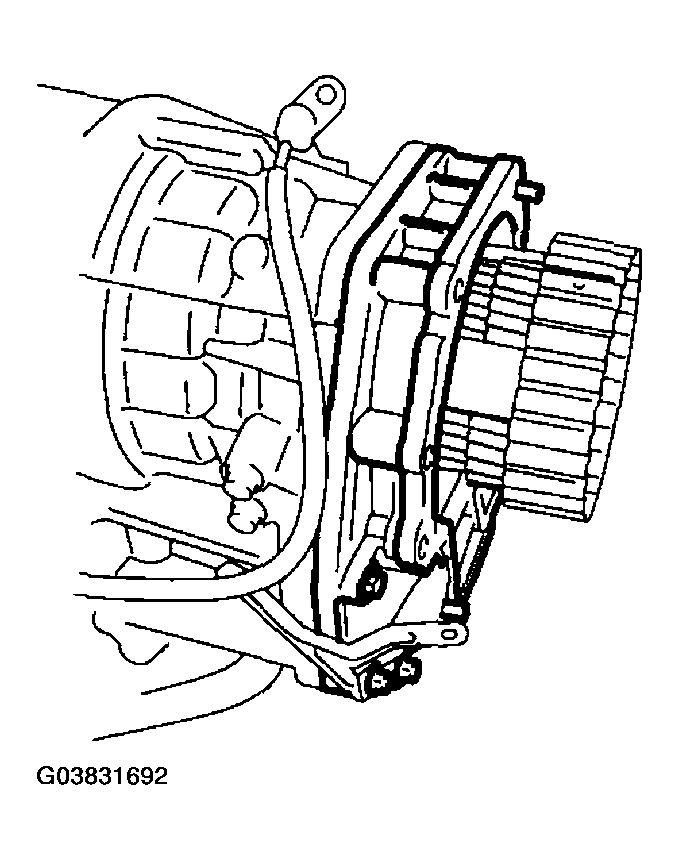

Fig 4: Installing Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Install the rear vehicle speed sensor.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 5: Installing Rear Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly into the vehicle. < Ref. to , INSTALLATION , Automatic Transmission Assembly. >
Pour ATF from the oil charge pipe. < Ref. to , REPLACEMENT , Automatic Transmission Fluid. >
Check the level and leaks of the ATF. < Ref. to , INSPECTION , Automatic Transmission Fluid. >
