General Description
›
Components With Torque Specifications
›
VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)
VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)

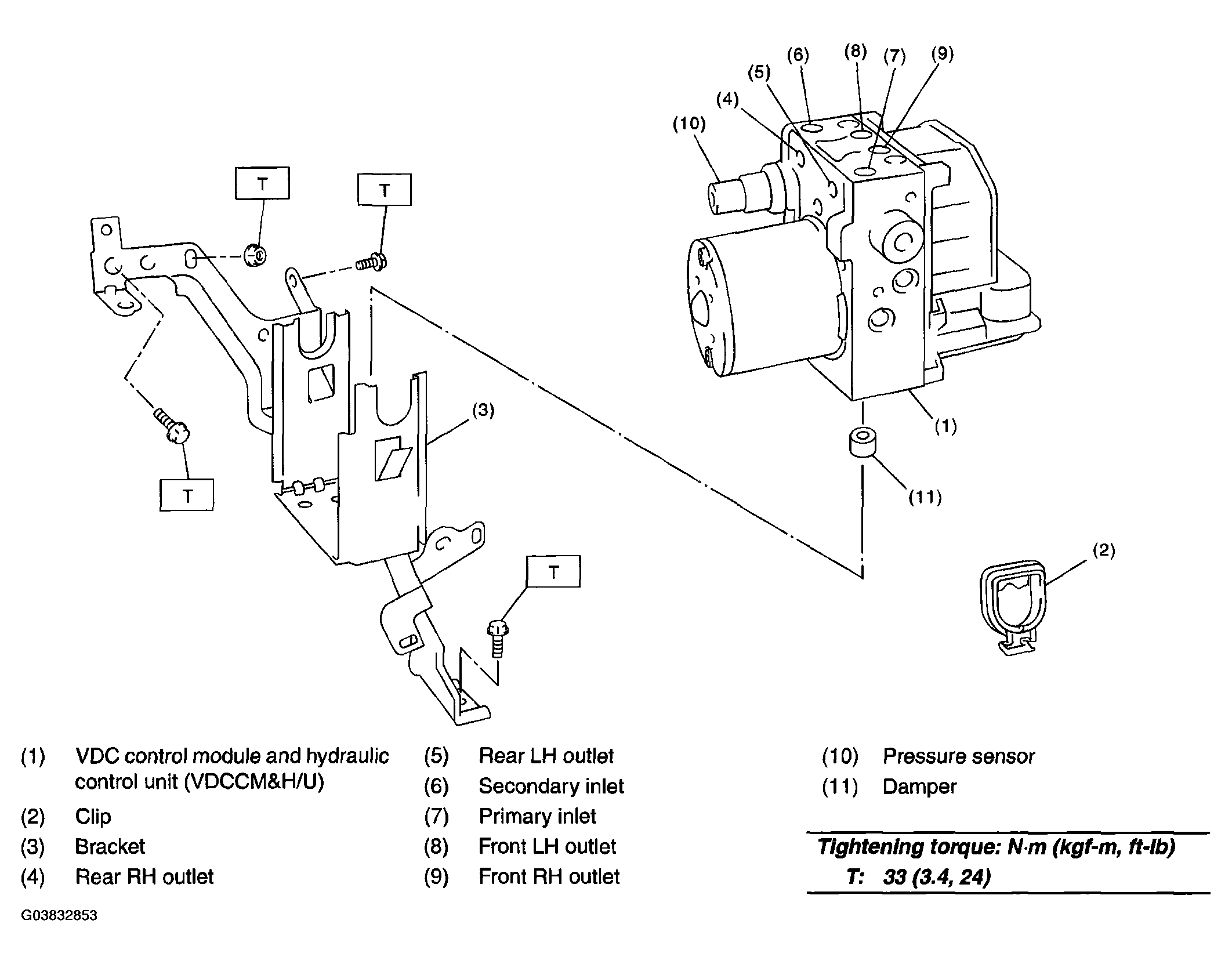

Fig 1: Identifying VDC Control Module & Hydraulic Control Unit Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
