Electronic Throttle Control Relay: Removal

1. Disconnect the ground cable from battery.

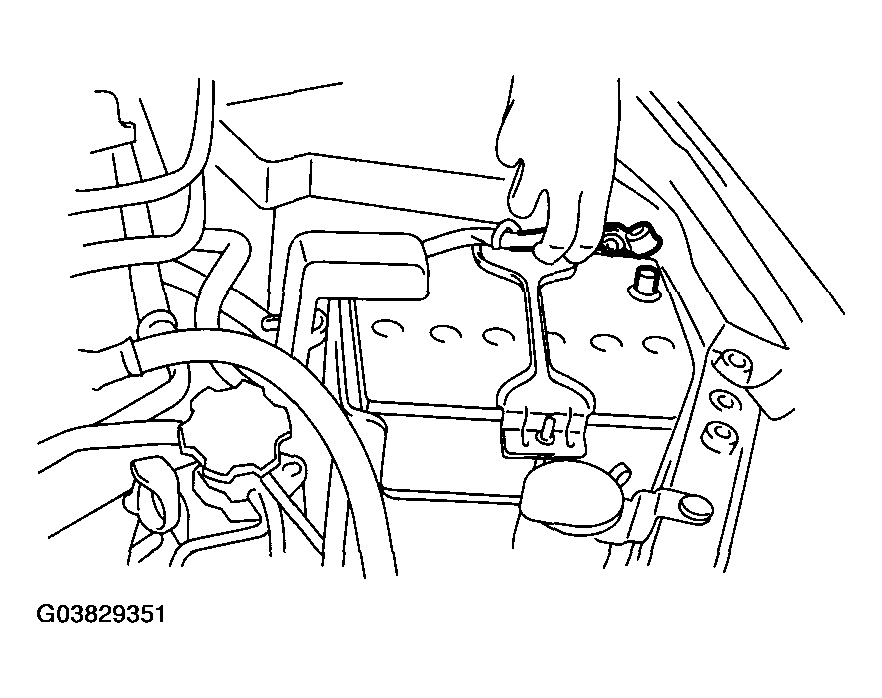

   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
3. Remove the harness cover (A).
   Fig 2: Removing Harness Cover

   Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect the connector from electronic throttle control relay.

Fig 3: Disconnecting Connector From Electronic Throttle Control Relay

Courtesy of SUBARU OF AMERICA, INC.
